DO NOT BURN WET COAL

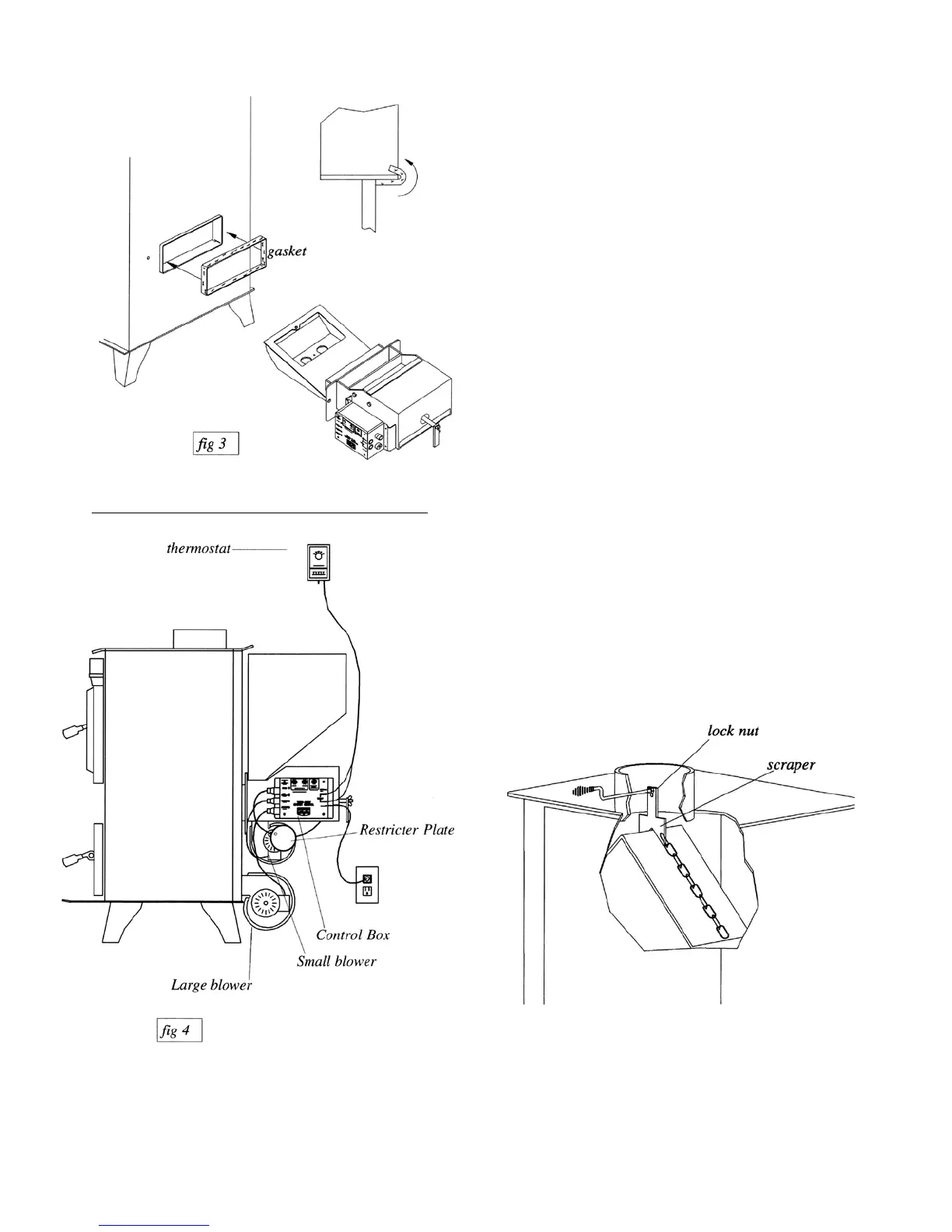

Make sure the gasket is in place on the feeder
opening on the rear of the unit, as shown in g 3.
Insert the stoker into the opening in the rear of the
unit. Attach using (2) 5/16 X 1 1/4 bolts.
Install the smaller of the two blowers on the bottom
of the feeder by sliding it into the bracket as far as
it will go. Install restricter plate on blower as shown
below in Fig. 4.
Slide the larger blower into place on the bottom
rear of the stove. NOTE: The bolt holes on the
blowers are not used.
Install the control box on mounting pad provided on
the side of the stoker with (4) #8-32 bolts. NOTE:
The receptacles go toward the front.
Plug the gear motor into the top, the small
combustion blower into the middle, and the large
distribution blower into the bottom receptacle on
the control box as shown. More on the control later.
Install scraper as shown below with locking nut
on each side of the scraper. Tighten nuts when in
the rear most position to assure alignment. Cycle
rod in and out to clean unit.
