29P43 Pellet Stove3-90-04301R18_03/13
On the rear of the stove hopper there is a
hole to fasten the hopper extension into place.
On some units, this hole will need to be
opened. You will notice a small uncut area on
rear of the knockout. Push downward with a
screwdriver or like tool until the knockout is
rotated as far back to the inside of the hopper
as possible. This will allow the swell latch of the
hopper extension to fully expand to the bottom
side of the hole for a proper seal.

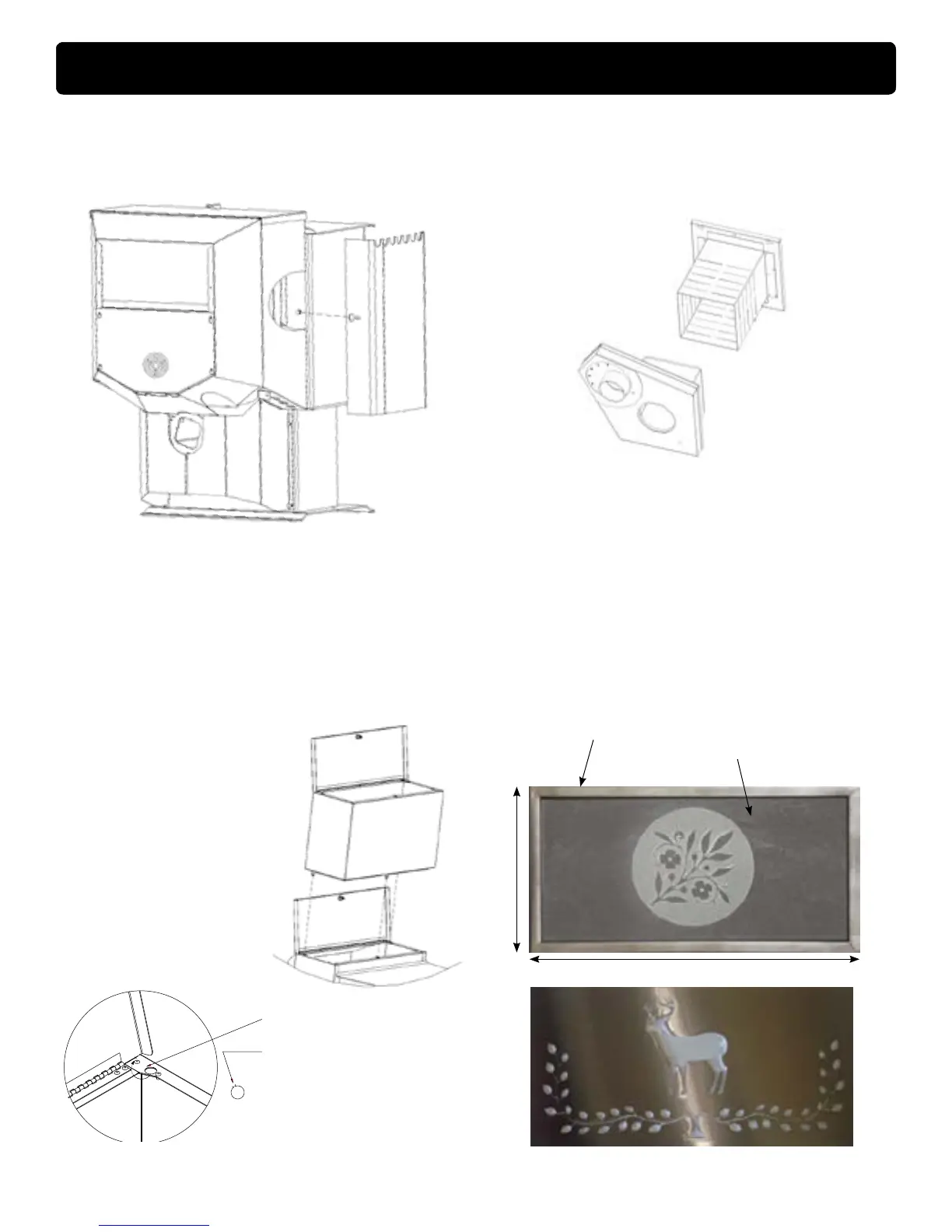

Options
Side Heat Shields
Side heat shields are available to reduce the clearance
to combustible materials.
Part #1-00-773863
Hopper Extension -Part #1-00-08536
The hopper extension allows you to put more pellet fuel
in the hopper which extends the burn time on one load
of pellets. The hopper extension adds 60 pounds to
the existing hopper capacity, allowing you to load 120
pounds of pellets at one time. The extension seals to
the unit hopper with three latches. Some models will
require a knockout be removed from the unit hopper
prior to installing the extension.
Decorative Tile/Grey Slate Options
The decorative slate tiles measure 11.938" x 5.938".
The tile/slate frame (part of trim kit) is not necessary to
hold the tile or slate in place on the stove. There are 4
decorative slate choices. See dealer for samples.
The Brushed Stainless deer cutout, pictured below, is
another option available. This cutout reveals the color
of the stove through the cut out shapes.
5.938"
11.938"
frame
tile/slate
Direct Vent Wall Passthrough Kit
You may choose to use the optional Direct Vent
Wall Passthrough Kit (part #1-00-677077) which
incorporates venting passthrough and outside air into
one component.
