14
P68 Pellet Stove

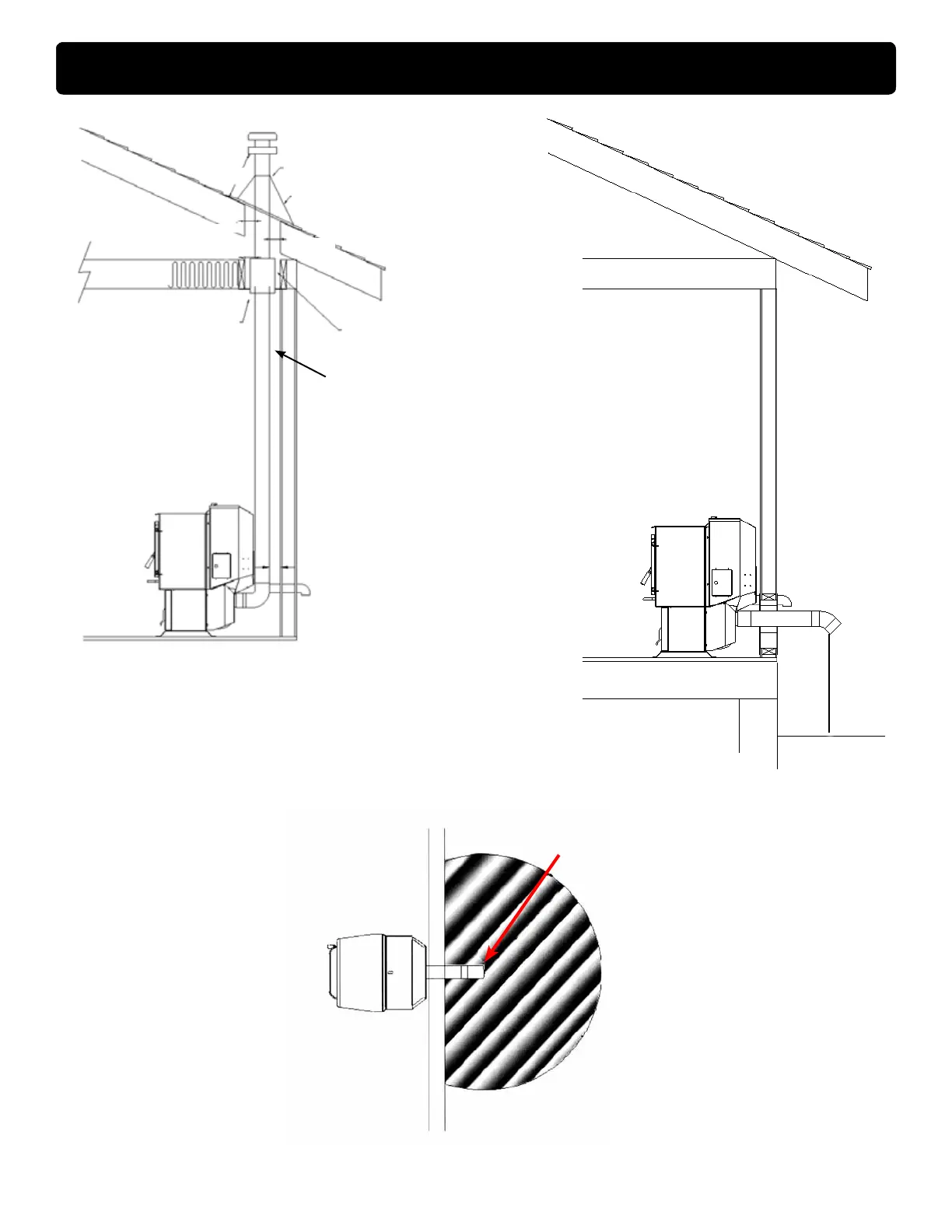

Through the ceiling vent, follow PL vent
manufacturers recommendations when using wall
and ceiling pass throughs.
It is rec omm end ed t hat
outside air be installed with
this venting conguration to
reduce smoke and creosote
smell in the room in the event
of power failure.
Min. above ground level
18"
Fig. 15
Fig. 14
PL vent manufacturer's
restop spacer and
support
(See Page 7 for
corner installation
clearances)
Storm collar
Flashing
3" min.
3" min.
12" min.
3" min.
3" min.
No insulation or
other combustible
materials are
allowed within 3" of
the pellet vent pipe.
Unless specied
by the pipe
manufacturer
12" min. wall to outlet
36" min clearance to any
combustible material
Fig. 16
Shaded area represents
the minimum clearance to
combustible materials such as
shrubbery, mulch or tall grasses.
