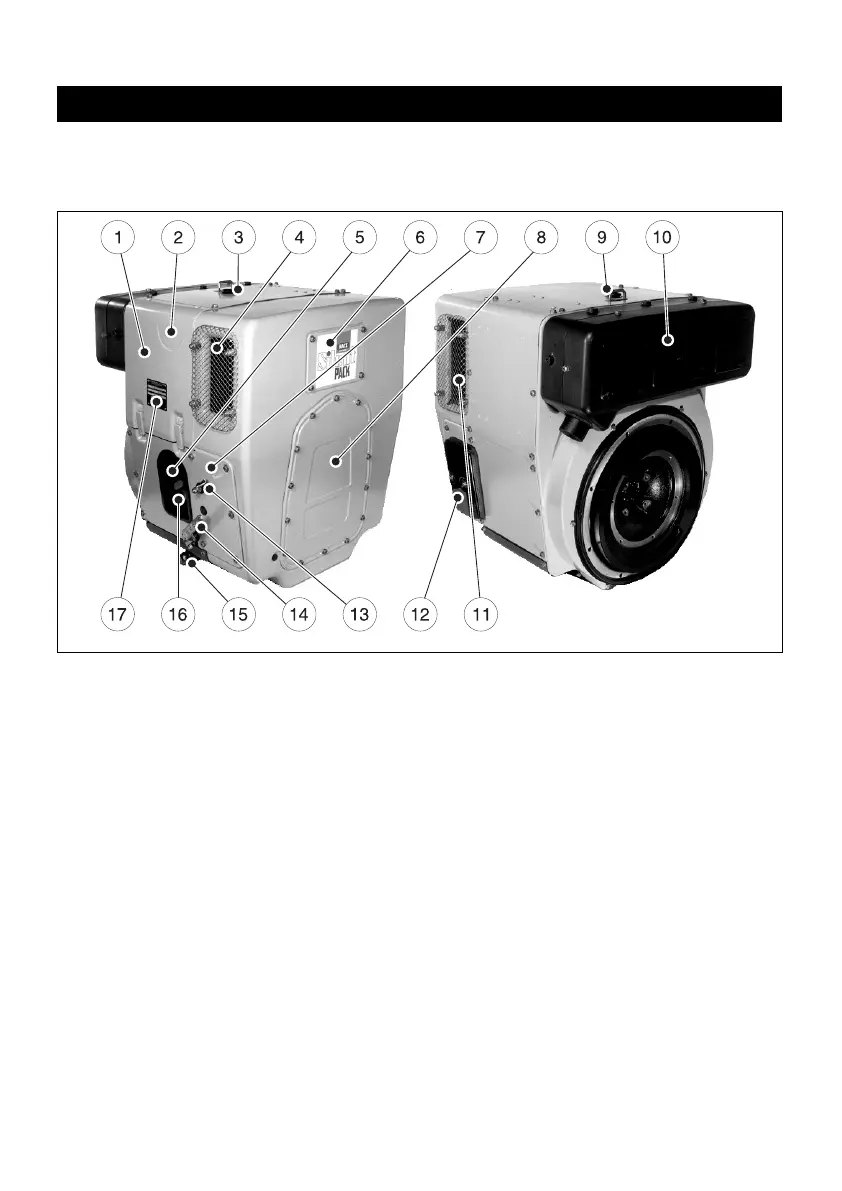

Description of engine
Fully-encapsulated version
1D41C • 1D81C engines
2
1 Capsule
2 Decompression lever
3 Cold-start oil metering device
4 Combustion and cooling air intake
5 Oil filter
6 Cleaning hatch
7 Side panels
8 Hold for starting handle
9 Suspension lug
10 Silencer (muffler), encapsul.
11 Cooling air outlet
12 Battery connection and central plug
for electrical system
13 Stop lever
14 Speed control lever
15 Oil drain plug
16 Oil filler and dipstick
17 Type plate
