8
1. Check the condition of the “shoes, wings and flaps” periodically. The shoes and wings
have wear indicators on their sides and should be checked occasionally to determine
if they need replacing. The shoe wear indicator is a line on the side of the shoe that
appears as a difference in texture. When this texture difference is no longer visible at the

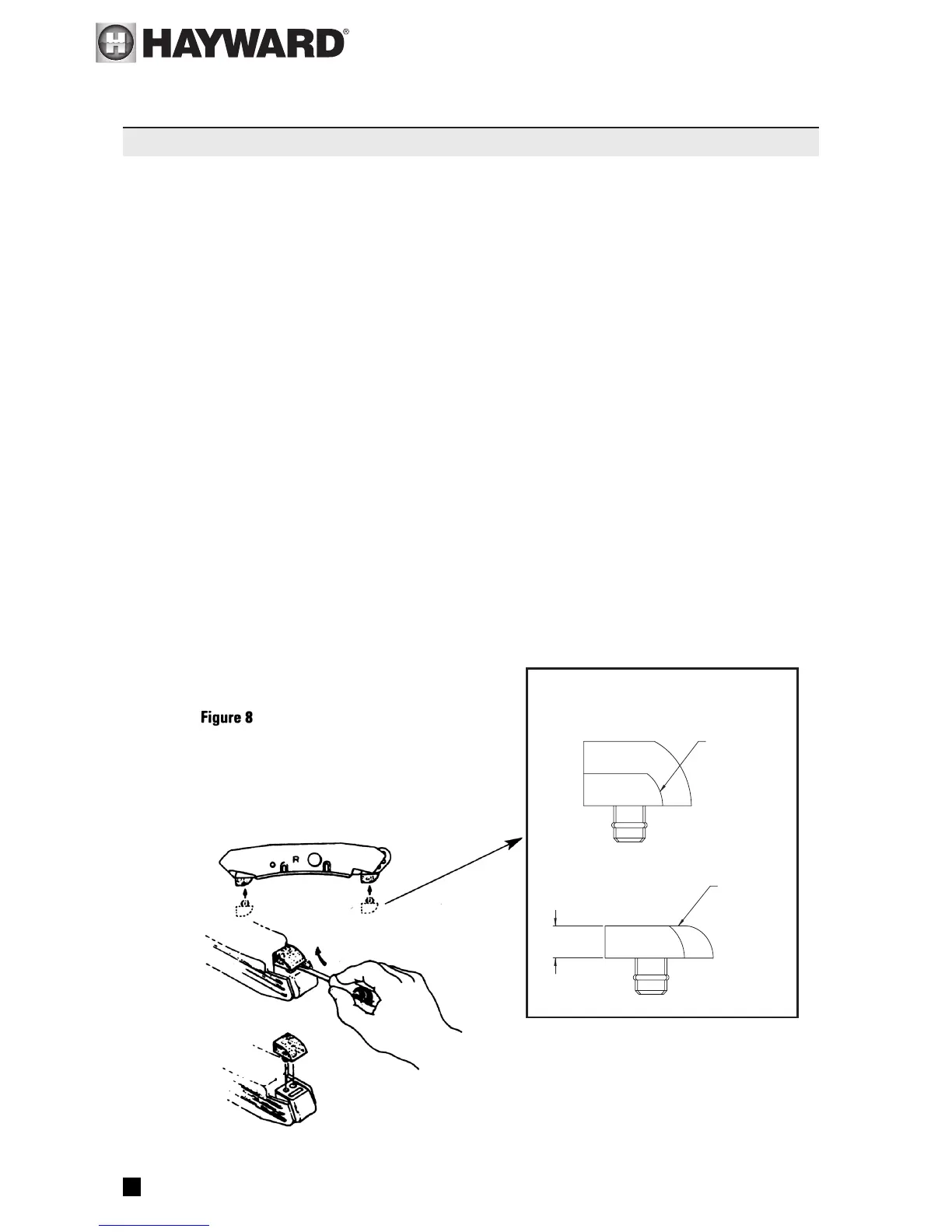

bottom of the shoe when viewed from either side, the shoes must be changed (see
Figure 8). Also on the side, the wing wear indicator is a horizontal line which has three
(3) vertical lines above it. When you can no longer see the horizontal line, the wings
must be changed (see Figure 9). The Hayward Tune-Up Kit is available from your dealer.
Shoes, wings and flaps may also be purchased separately.
2. SHOE REPLACEMENT:
a) Turn unit upside down.
b) Insert screwdriver between foot and shoe on one of the pads (see Figure 8).
c) Using a lifting motion, remove the shoe from the foot.
d) Dip a new shoe in water and attach the shoe to the foot, making sure to put the small
post into the small hole and the large post into the large hole. These posts and holes
are different sizes to prevent the shoes from being improperly installed.
e) Repeat Steps b,c, and d for each shoe.
