Hayward Pool Vac XL™ User Manual

13
“EASY OPENING BOTTOM”
Removal Instructions
6. “EASY OPENING BOTTOM”
The purpose of the “EASY OPENING BOTTOM” is to allow quick access to the turbine/
vacuum chamber for easy cleaning and maintenance.
Should the Cleaner stop moving or become sluggish due to debris trapped in the throat
or inside the unit, the turbine/vacuum chamber is accessible following the instructions on
pages 13 & 14 of this manual.
1. Turn off pump.
2. Remove Cleaner from pool.
3. Disconnect Cleaner from leader hose.
4. Turn Cleaner upside down.

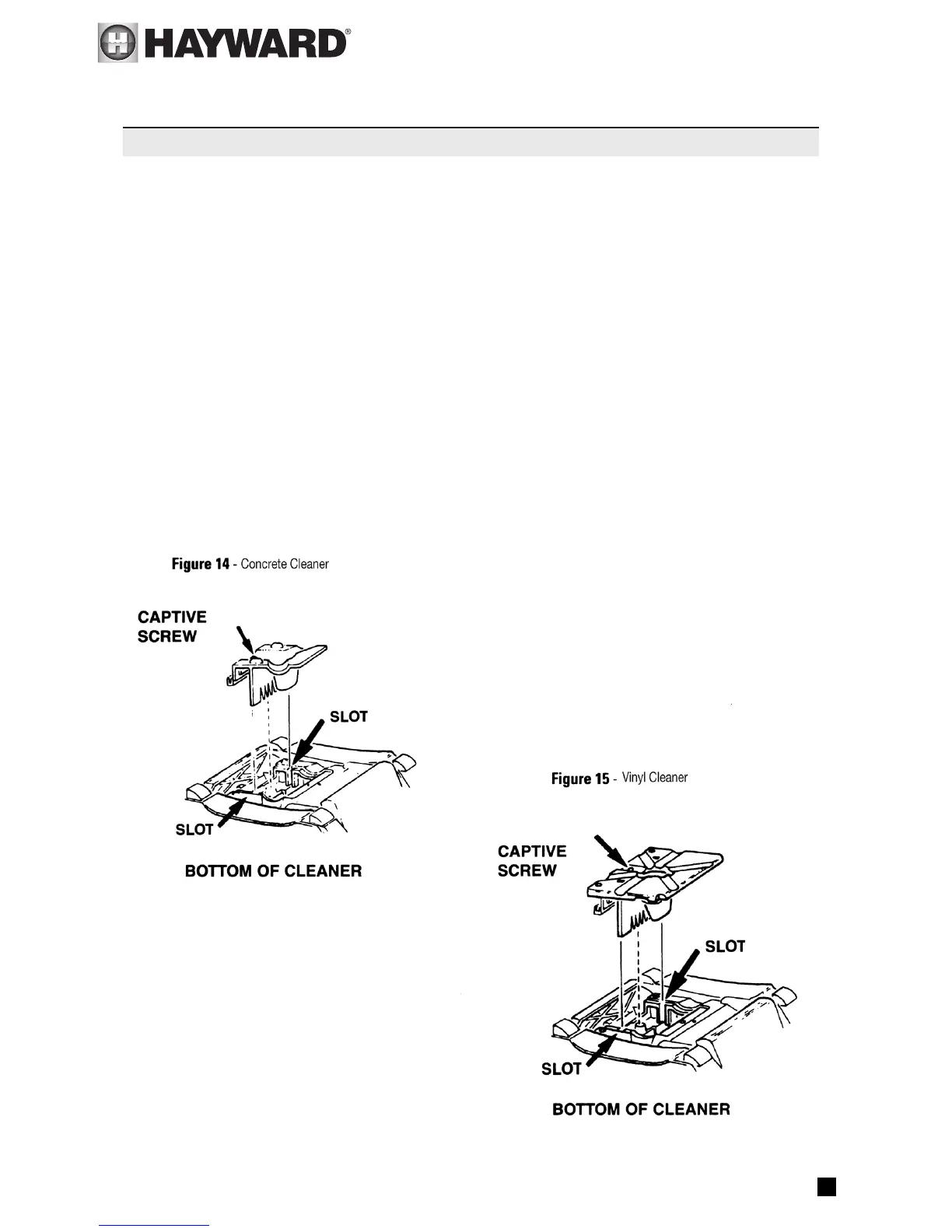

5. Locate and loosen the captive screw behind the throat in the center of the bottom
(see Figures 14 and 15).
1
2
3
4
1
1
1
2
3
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1

Hayward Pool Vac XL™ Specifications

General

Type	Suction Pool Cleaner
Pool Type	In-ground
Power Source	Pool Filtration System
Cleaning Coverage	Floor and Walls
Warranty	1-year limited warranty
Weight	15 lbs
Hose Length	40 feet
