HEIDENHAIN TNC 150 Service Manual

DR. JOHANNES HEIDENHAIN
D-8225 Traunreut
Telefon (08669) 31~0,Telex 56831
SERVICE MANUAL TNC 150
Page 41
Kundendienst
Se&ion 3.3

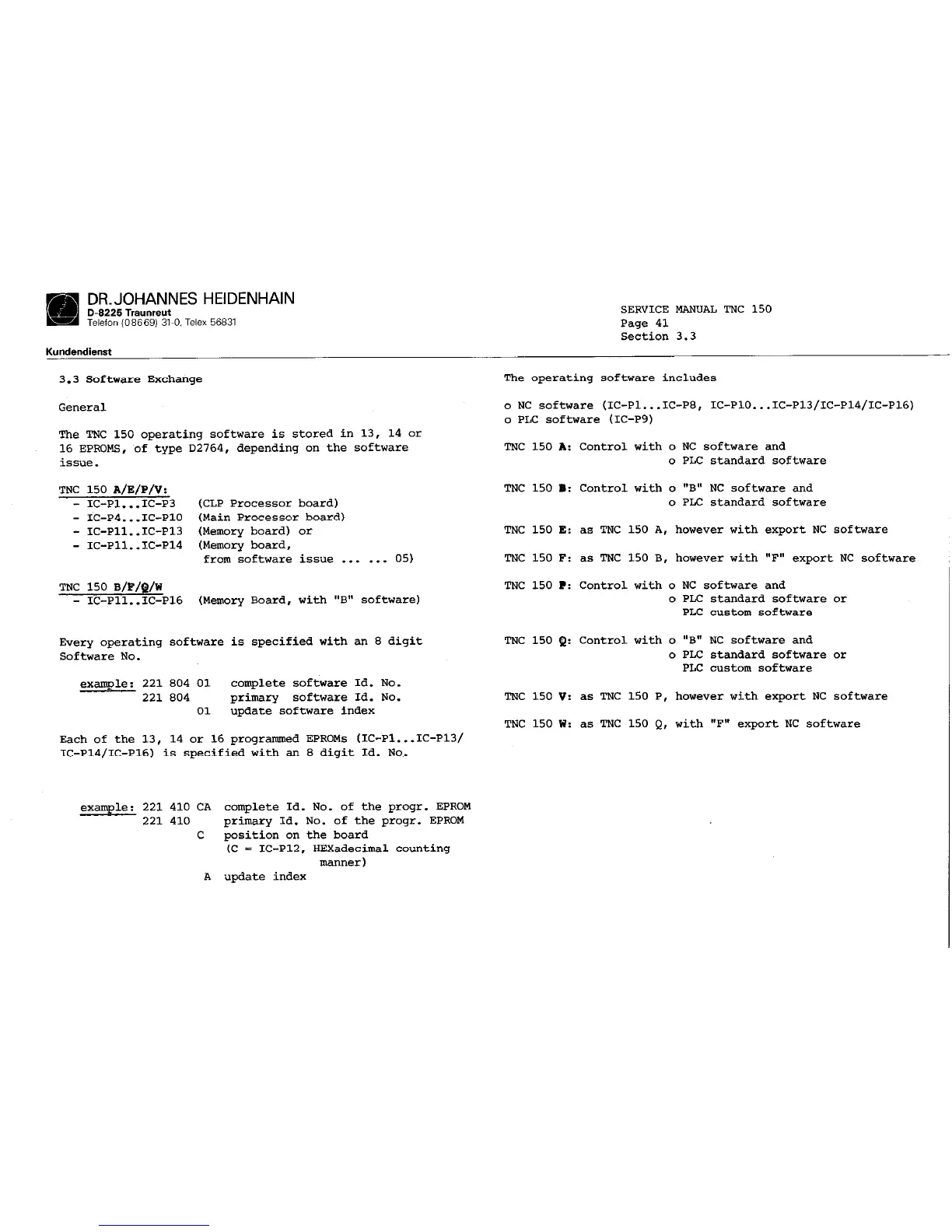

3.3 Software Exchange
General
The TNC 150 operating software is stored in 13, 14 or
16 EPROMS, ~of type D2764, depending on the software
issue.
TNC 150 A/E/P/V:
- IC-Pl...IC-P3
- IC-PI...IC-PlO
- IC-Pll..IC-P13
- IC-Pll..IC-P14
TNC 150 B/?/Q/W
- IC-Pll..IC-P16
(CLP Processor board)
(Main Processor board)
(Memory board) or
(Memory board,
from software issue . . . . . . 05)
(Memory Board, with "B" software)
Every operating software is specified with an 8 digit
Software No.
example: 221 804 01 complete software Id. No.
221 804
primary software Id. No.
01 update software index
Each of the 13, 14 or 16 programmed EPROMs (IC-Pl...IC-P13/
IC-PlQ/IC-Pl6) is specified with an 8 digit Id. Non.
example: 221 410 CA complete Id. NO. of the progr. EPROM
221 410 primary Id. No. of the progr. EPROM
C position on the board
(C = IC-P12, HEXadecimal counting
manner)
A update index
The operating software includes
o NC software (IC-Pl...IC-P8, IC-PlO...IC-P13/IC-Pl4/IC-P16)
0 PLC software (IC-P9)
TNC 150 A: Control with o NC software and
o PLC standard software
TNC 150 B: Control with o "B" NC software and
o PLC standard software
TNC 150 E: as TNC 150 A, however with export NC software
TNC 150 P: as TNC 150 B, however with "F" export NC software
TNC 150 ?: Control with o NC software and
o PLC standard software or
PLC custom software
TNC 150 Q: Control with o "B" NC software and
o PLC standard software or
PLC custom software
TNC 150 V: as TNC 150 P, however with export NC software
TNC 150 W: as TNC 150 Q, with "F" export NC software
