18

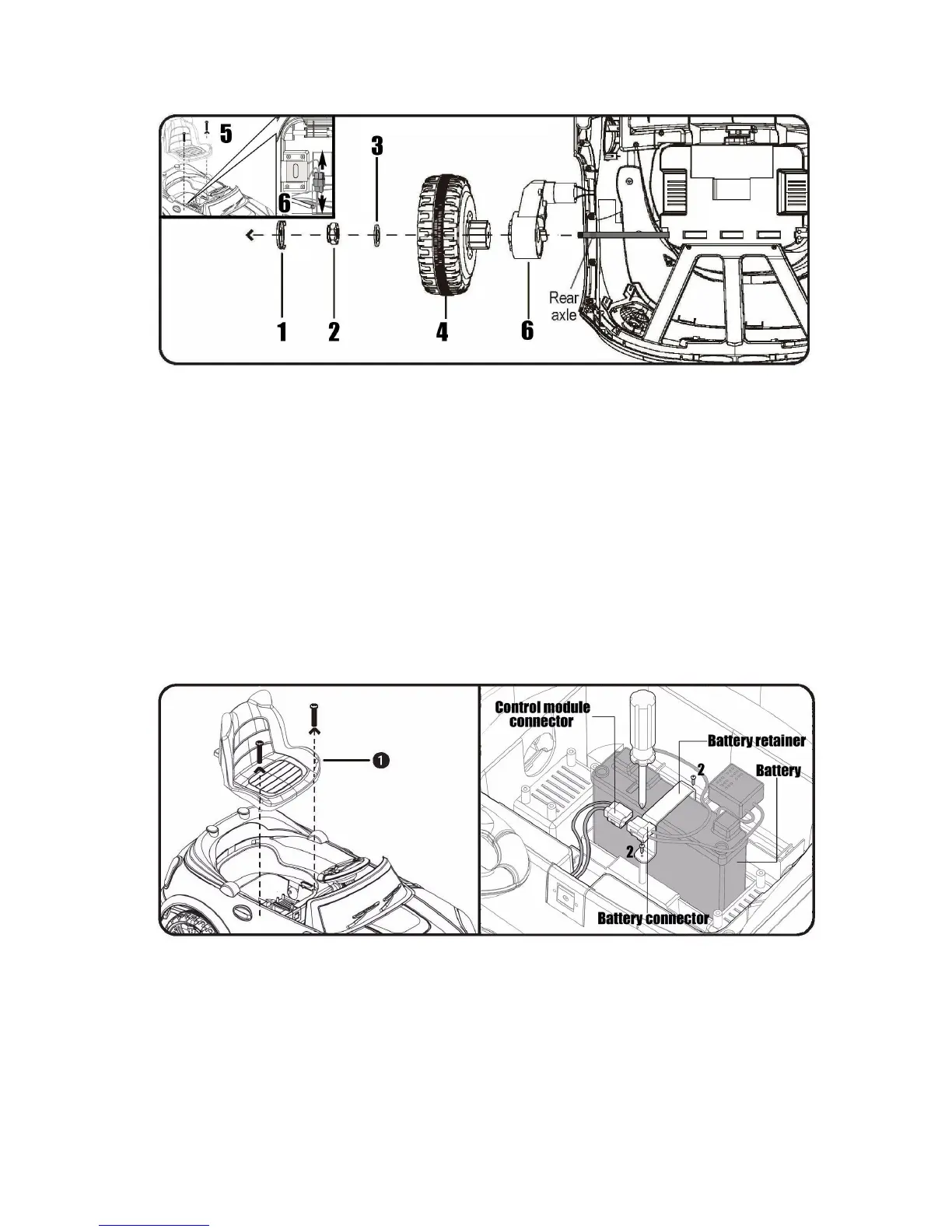

HOW TO REPLACE REAR WHEEL AND GEAR BOX
1. Remove the Axle Cap with a flat head screwdriver.
2. Remove the M10 locknut with a 17mm socket wrench.
3. Remove the Ø10 washer.
4. Remove the driving wheel, and replace with new wheel.
If you need to replace the gear box, please proceed to the next step.
5. Unscrew the screws on the seat with a screwdriver and remove the seat.
6. Unplug the power connector that is connected to the gear box.
7. Remove the gear box and replace with a new one.
8. Plug the power connector back into the gear box.
9. Replace the driving wheel, Ø10 washer, and M10 locknut, and tighten securely.
10. Re-insert the axle cap and secure the seat back onto the vehicle with the screws.
HOW TO REPLACE THE BATTERY
1. Unscrew the screws on the seat with a screwdriver and remove the seat.
2. Use a screwdriver to remove the two screws from the battery retainer.
3. Remove the battery.
4. Unplug the power connector (which is connected to the battery).
5. Carefully lift the dead battery and replace it with a new one.
6. Replace the battery retainer and secure it with the screws. Plug the power
connector into the terminal on the battery and replace the seat.
