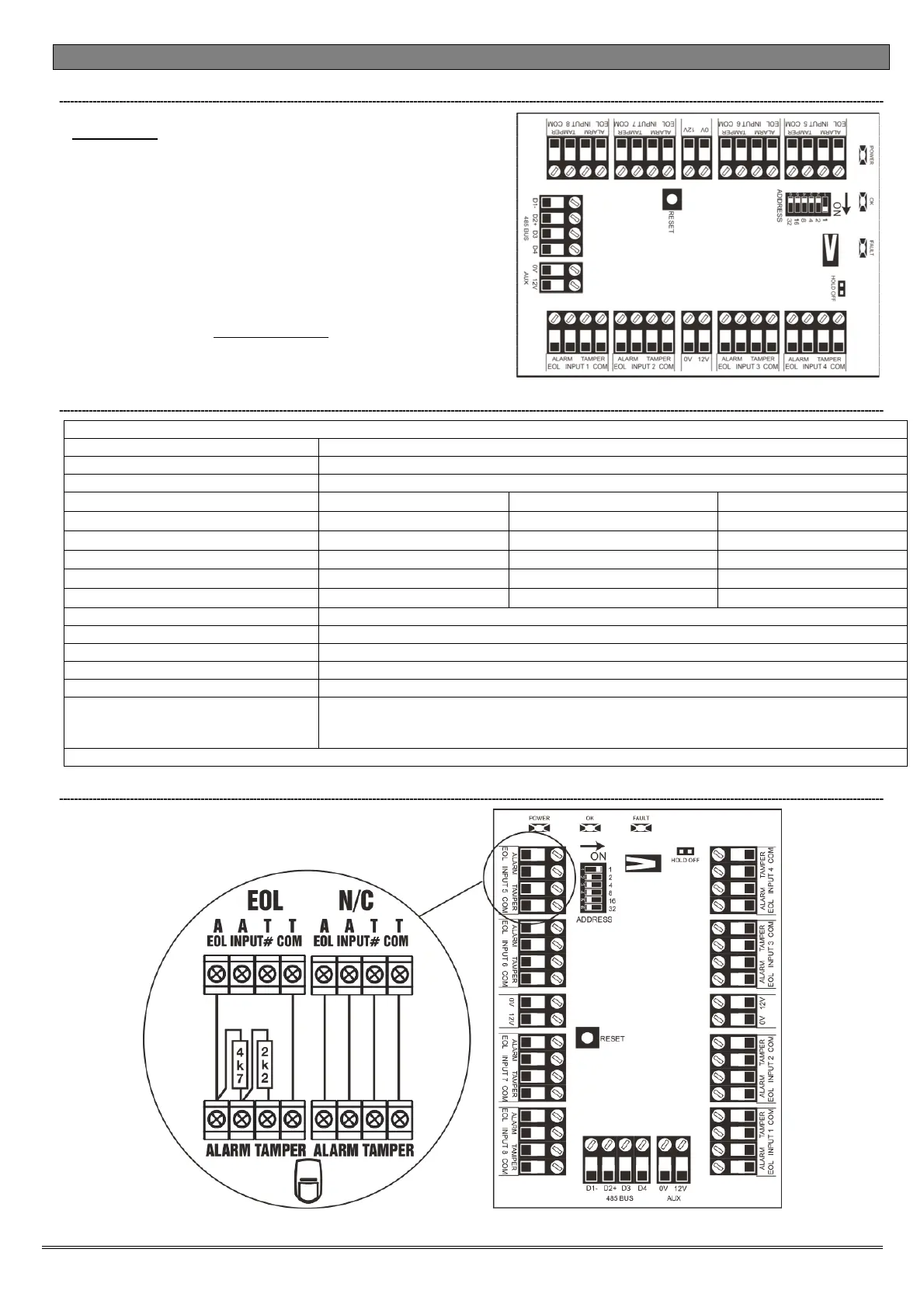

6.4 Connecting the Zone Expander Module (EURO-ZEM8)
6.4.1 The EURO-ZEM8 Expander
EURO-ZEM8
The EURO-ZEM8 is an input expander that supports
8 inputs (not inertia).
It also supports NC (normally closed), DEOL, SEOL
input, and 3 Resistor (Grade 3) configurations. The
EURO 280 will support up to 30 x Zone Expander
Modules. Please see page: 4.
NOTE: To wire double pole, program the resistor
range to 4K7/2K2 in 'CHOOSE MODE' (in the
Engineer menu).
6.4.2 EURO-ZEM8 Technical Specification
EURO-ZEM8
Input Voltage 9-15V
Current Consumption 45mA
Inputs NC, DEOL, 3 Resistor (Grade 3)
Input EOL Resistor Values 1k / 1k DEOL Range 4k7 / 2k2 DEOL Range 4k7 / 4k7 DEOL Range
Normal (closed state) 0k5 to 1k4 1k4 to 2k9 3k7 to 8k3
Burglary Alarm 1k5 to 5k9 4k2 to 7k8 8k4 to 10k2
Fault 6k to 8k1 8k to 11k3 10k3 to 14k9
Masking (6k8) 8k2 to 17k 11k6 to 22k 15k to 22k
Tamper <0k5 or >17k <1k4 or >22k <3k7 or >23k
Dimensions (plastic box) 173 x 125 x 32mm
Dimensions (PCB) 128 x 87 x 16mm
Colour and Casing White 3mm ABS with clear polycarbonate window
Security Grade 3
Indication LEDs (Power, OK and Fault)
Temperature Storage: -20°C to +60°C
Certified: -10°C to +40°C
Nominal: -10°C to +50°C
Front and rear tamper protected
6.4.3 The EURO-ZEM8 Input Configuration
