HIKVISION DS-2CD2032-I Installation Manual

Installation Manual of Network Camera
36
3.4 Type IV Dome Camera
3.4.1 Camera Description
1
2
3
4
5
6
8
7

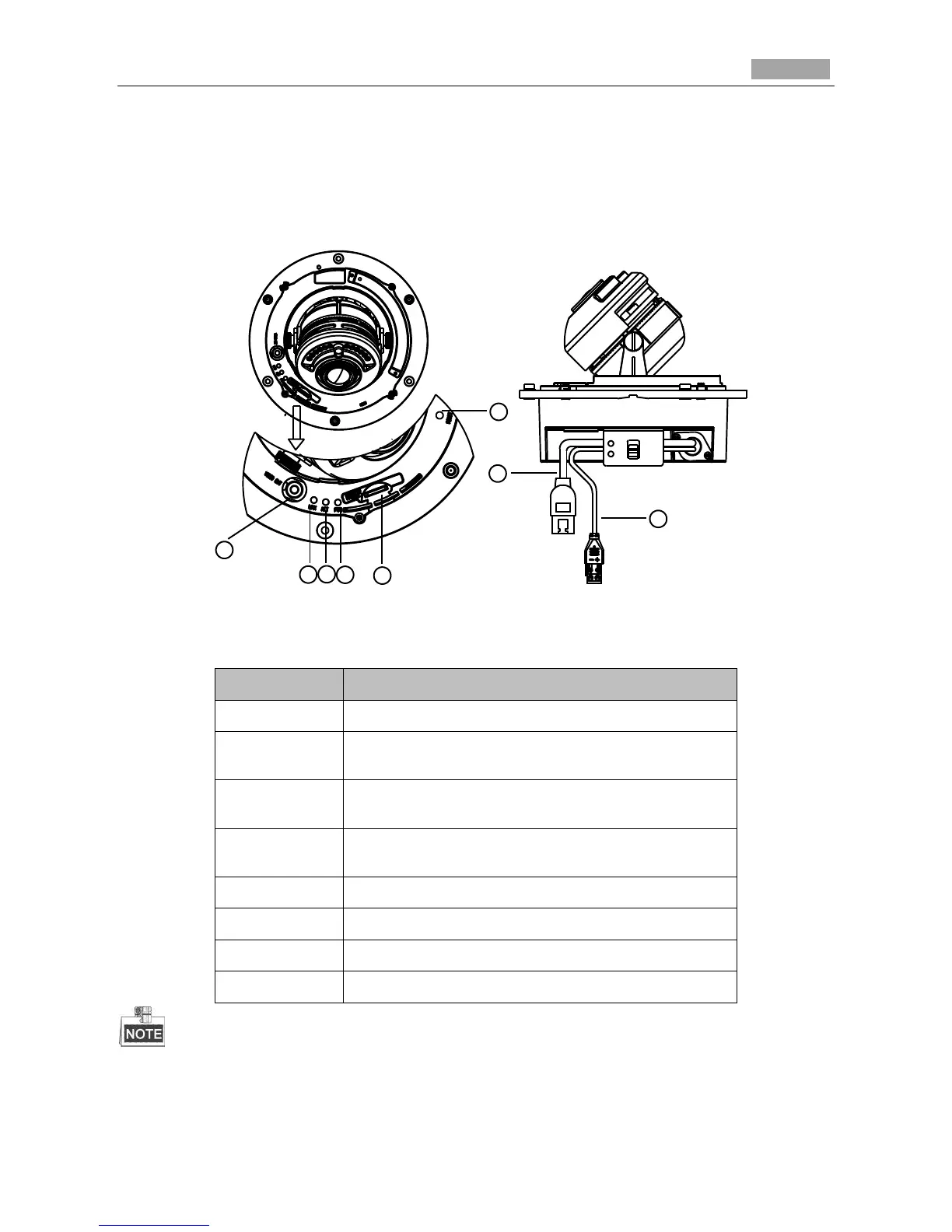

Figure 3-33 Overview
Table 3-4 Physical Description
No.
Description
1
Video output interface
2
LINK: Indicator is solid yellow when network is
connected.
3
ACT: Indicator flashes blue when network
connection is functioning properly.
4
PWR: Indicator is solid red when the device is
powered on.
5
Micro SD slot
6
RESET: Reset the camera.
7
10M/100M self-adaptive Ethernet interface
8
Power supply interface
 The extended interface can be connected to alarm input/output interface, audio input/output
interface, RS-485 interface, etc.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2032-I Specifications

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	76.9 mm
Width	60.4 mm
Height	139.2 mm
Weight	500 g
