HIKVISION DS-2CD2112-I Quick Operation Guide

Quick Operation Guide of Network Camera
23
1.4.2 Cube Camera II
Camera description:

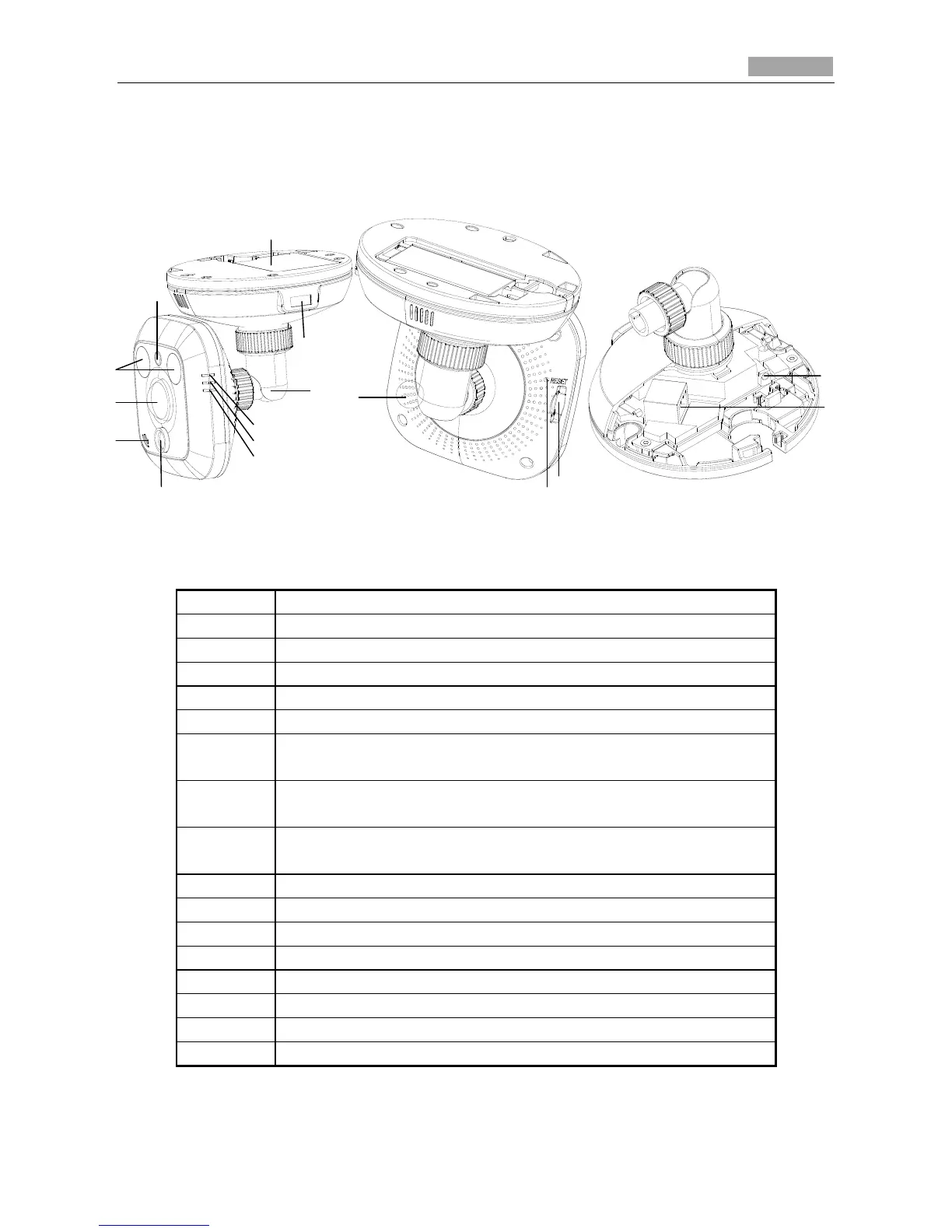

Figure 1-35 Overview
Table 1-16 Description
No.
Description
1
Photosensitive resistance
2
Infrared light
3
PIR sensor
4
Microphone
5
Lens
6
Alarm: Indicator is solid red when the camera is armed with PIR and
access control and it is solid blue when the camera is unarmed.
7
Indicator flashes blue when movement or presence is detected in
its field of view.
8
Link: Indicator flashes orange when network connection is
functioning properly.
9
Tri-axial adjustment bracket
10
USB interface
11
Battery
12
Speaker
13
RESET: Reset button
14
Micro SD card slot
15
Power supply interface
16
10M / 100M self-adaptive Ethernet interface & PoE
Note:
After the powering on of the camera, pressing and holding the RESET button for about 10 seconds
1
2
3
4
6
7
8
5
9
10
11
12
13
14
16
15

HIKVISION DS-2CD2112-I Specifications

General

Type	IP security camera
PTZ control	-
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	704 x 576, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Pan range	0 - 355 °
Tilt angle range	0 - 65 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	12 mm
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	7 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	82 mm
Weight	500 g
Diameter	111 mm
