HIKVISION DS-2CD2112-I Quick Operation Guide

Quick Operation Guide of Network Camera
2
13
IN, G: Alarm input interface

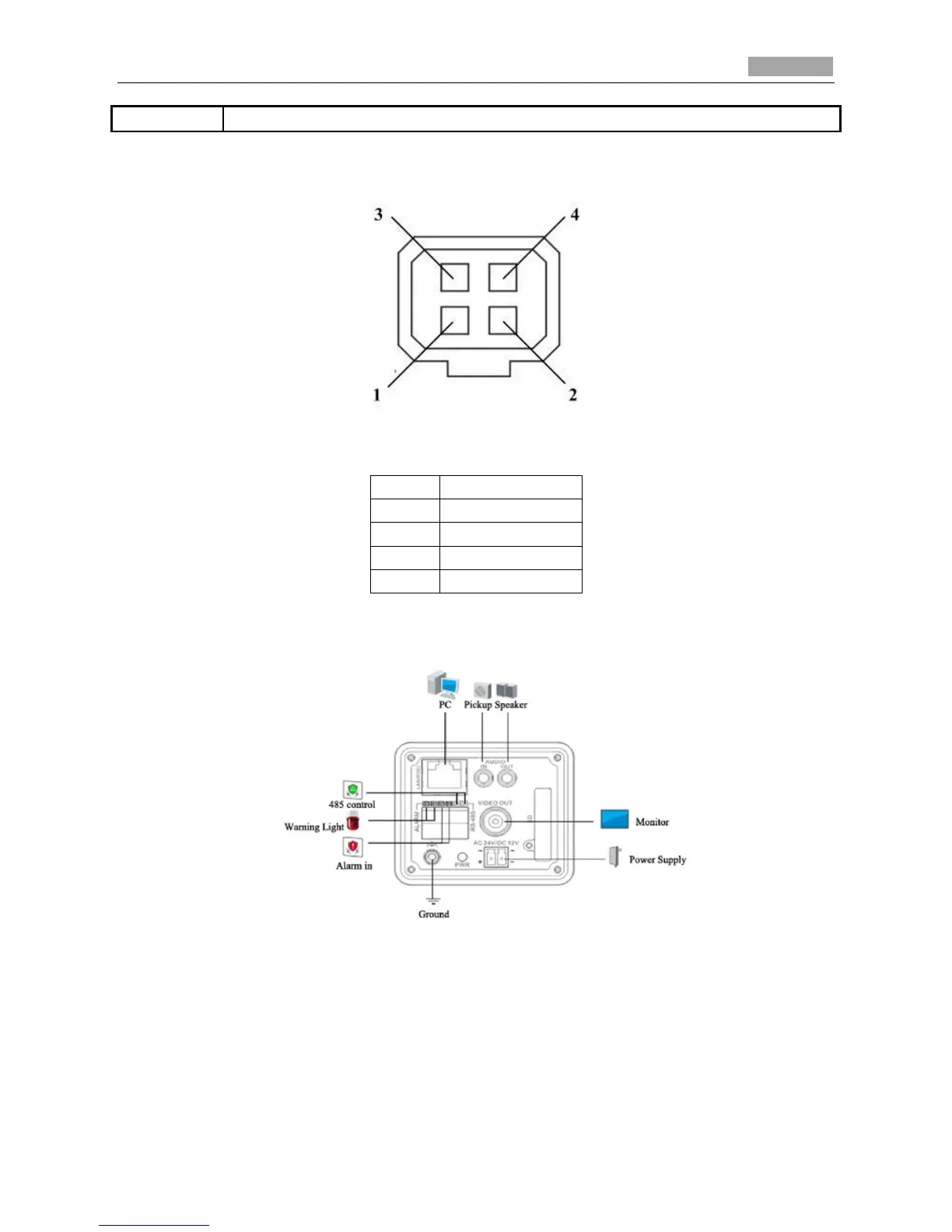

Note: The type of auto-iris interface is shown in Figure 1-2, and the definition of each pin is shown
below:
Figure 1-2 Auto-iris Interface
Table 1-2 Pins
DC-driven
1
Damp-
2
Damp+
3
Drive+
4
Drive-
Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC.
Camera wiring Diagram:
Figure 1-3 Wiring Diagram
1.1.2 Box Camera II
Camera description:

HIKVISION DS-2CD2112-I Specifications

General

Type	IP security camera
PTZ control	-
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Dome
Mounting type	Ceiling
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	704 x 576, 1280 x 960, 1280 x 720 (HD 720), 640 x 480 (VGA)
Pan range	0 - 355 °
Tilt angle range	0 - 65 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.01 lx
Field of view (FOV) angle	73.1 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	2.0
Fixed focal length	12 mm
Password protection type	User
LED type	IR
Night vision distance	30 m
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	7 W
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Height	82 mm
Weight	500 g
Diameter	111 mm
