User Manual of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.

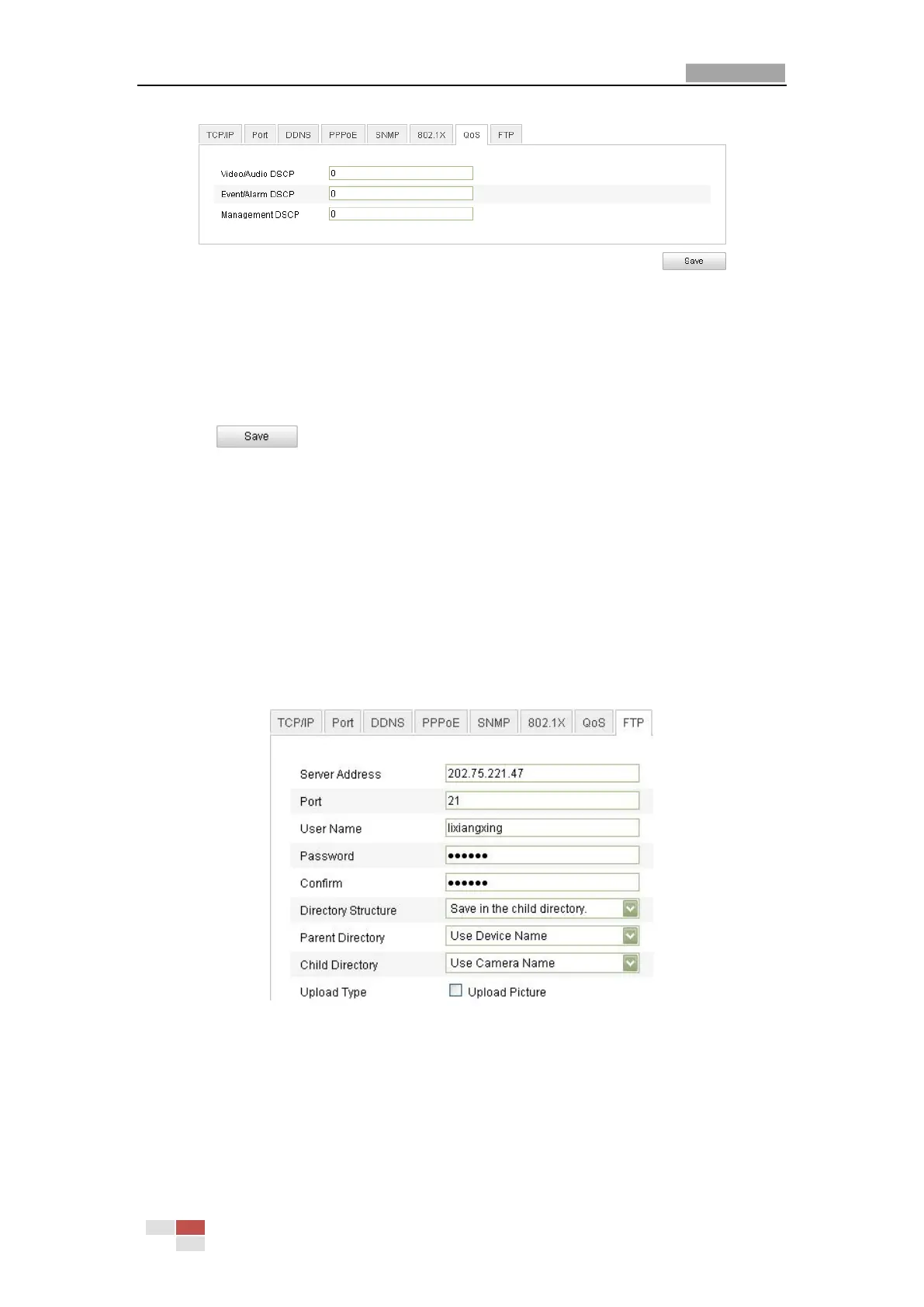

Figure 5-16 QoS Settings
2. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and
Management DSCP.
The valid value range of the DSCP is 0-63. The bigger the DSCP value is the higher
the priority is.
3. Click to save the settings.
Note: it will ask for a reboot for the settings to take effect.
5.3.8 Configuring FTP Settings
Purpose:
The captured pictures of the camera can be uploaded to FTP server.
Steps:
1. Enter the FTP Settings interface:
Configuration >Advanced Configuration > Network > FTP
Figure 5-17 FTP Settings
2. Configure the FTP settings, including server address, port, user name, password,
directory and upload type.
Directory: In the Directory Structure field, you can select the root directory,
parent directory and child directory. When the parent directory is selected, you
have the option to use the Device Name, Device Number or Device IP for the
name of the directory; and when the Child Directory is selected, you can use the
