User Manual of Network Fisheye Camera
111
10.2 Configuring Capture Setting
Purpose:
You can configure the scheduled capture and event-triggered capture. The captured
picture can be stored in the SD card (if supported) or in the network disk (For details,
please refer to Section 6.3 Configuring Net HDD). The captured pictures can also be
uploaded to a FTP server.
Steps:
1. Enter Capture setting interface: Configuration > Storage > Schedule Setting
2. Go to Capture Schedule tab to configure the capture schedule by click-and-drag
the mouse on the time bar.

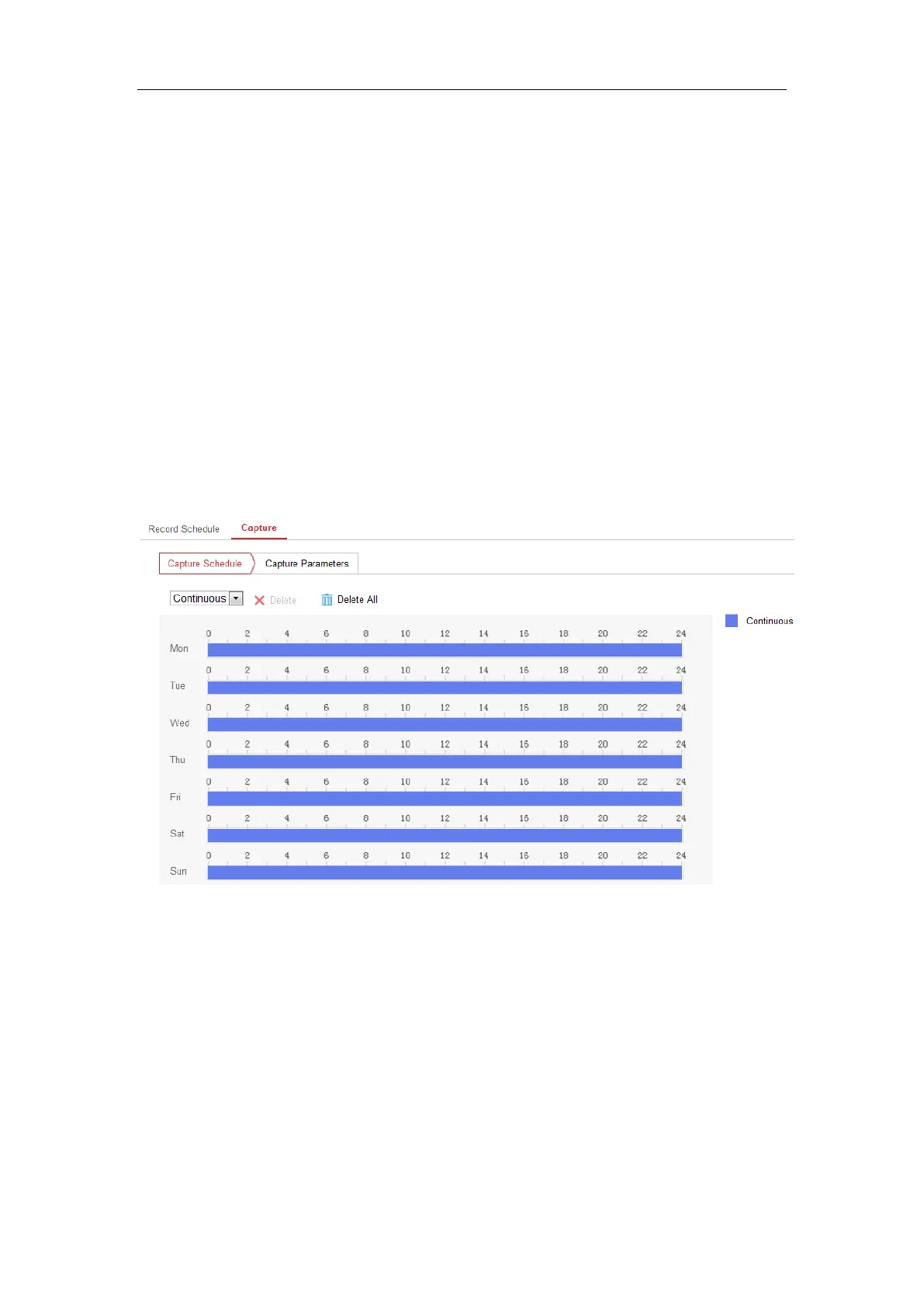

Figure 10-4 Capture Schedule Setting
3. Click Save to save the settings.
4. Go to Capture Parameters tab to configure the capture parameters.
(1) Check the Enable Timing Snapshot checkbox to enable continuous capture.
(2) Select the picture format, resolution, quality and capture interval.
(3) Check the Enable Event-triggered Snapshot checkbox to enable
event-triggered capture.
Note: Select Upload to FTP/Memory Card/NAS as the linkage method for
