Network Camera User Manual
107
1. Enter the Object Removal Detection settings interface, Configuration > Event >
Smart Event > Object Removal Detection.
2. Select the Camera No.

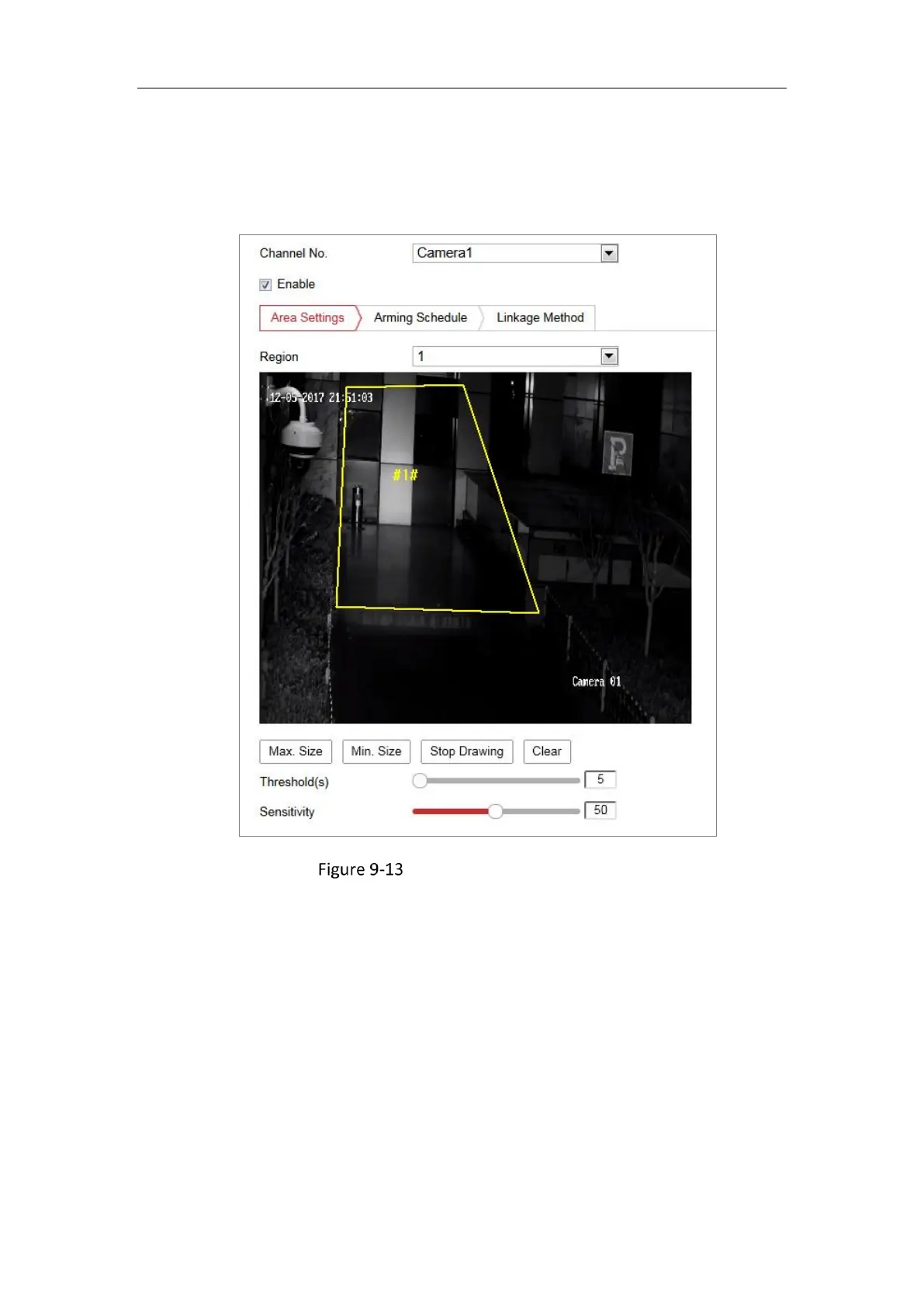

Object Removal Detection
3. Check Enable checkbox to enable the function.
4. Select the Region from the drop-down list for detection settings.
5. Click Area Settings and click Draw Area button to start the area drawing.
6. Click on the live video to specify the four vertexes of the detection region, and
right click to complete drawing.
7. Set the Max. Size and Min. Size for valid targets. Targets smaller or larger than
the valid target size are not able to trigger detection.
Max. Size: The maximum size of a valid target. Targets with larger sizes would

HIKVISION DS-2CD6924G0-IHS Specifications

General

Form factor	Dome
Mounting type	Ceiling
Product color	Black
Bluetooth	-
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Sample rate	48 kHz
Bit rate range	16 - 192 Kbit/s
Audio formats supported	G.711, MP2L2, G.722.1, G.726, PCM
Total megapixels	- MP
Maximum resolution	6480 x 1080 pixels
Video formats supported	H.264, H.265
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
Number of cameras	1
Fixed focal length	6 mm
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	20 m
Number of illumination LEDs	4
DC output voltage	12
Power source type	DC, PoE
Sensor type	CMOS
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Pan range	0 - 355 °
Tilt angle range	0 - 90 °
Minimum illumination	0.003 lx
Type	IP security camera
Languages support	English
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	256 GB

Weight and Dimensions

Depth	207.63 mm
Width	189.5 mm
Height	206.62 mm
Weight	3000 g
Package type	Box
Package depth	261 mm
Package width	340 mm
Package height	293 mm
Package weight	5000 g
