HIKVISION DS-2CD7153-E Installation Manual

Installation Manual of Network Mini Dome Camera
Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©
3

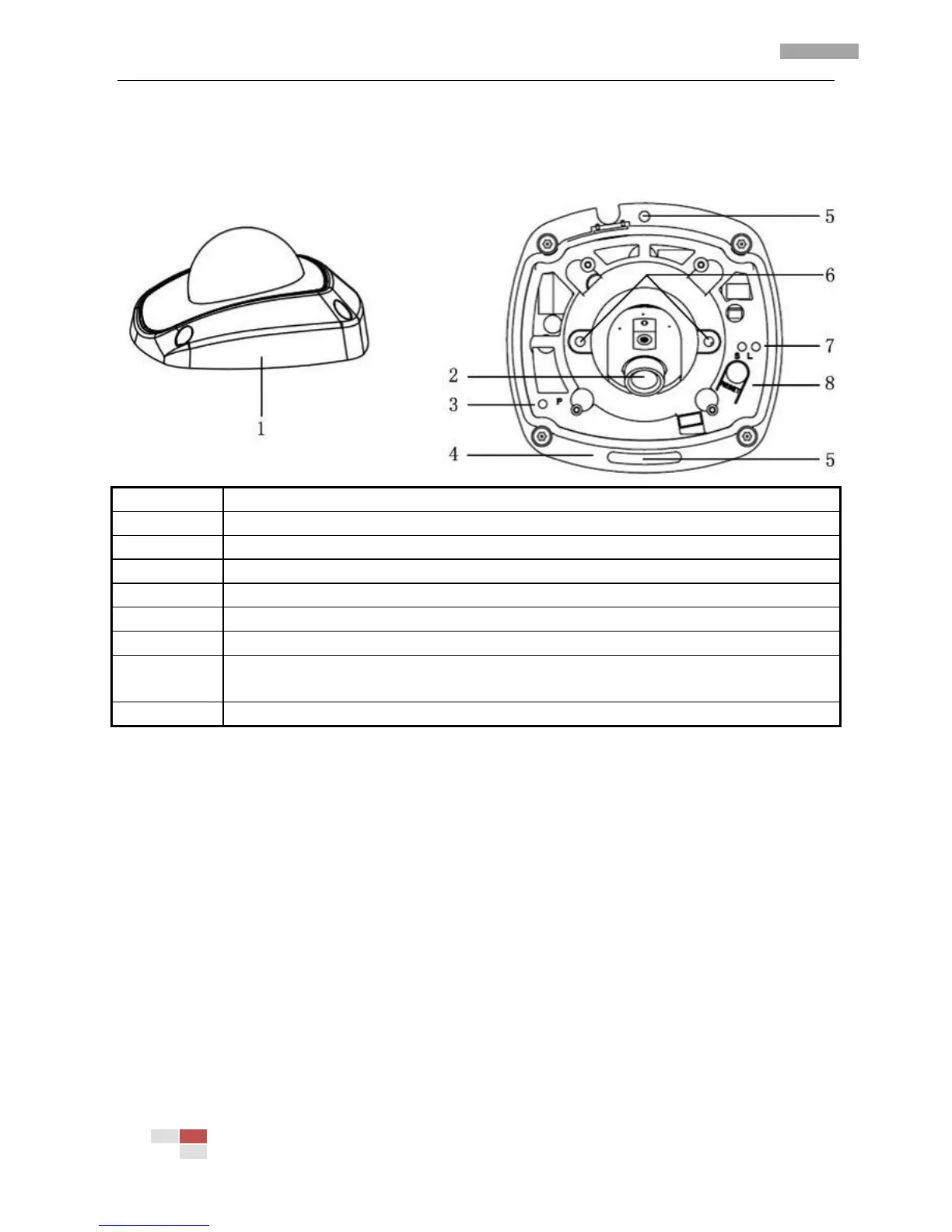

2.1.1 Camera Physical Description
Serial NO.
Description
1
Back box
2
Lens
3
P: Power LED indicator, which turns red when power is applied to the unit.
4
Bottom board
5
Bottom board set screw hole
6
Lens set screw
7
S & L: Network status LED indicator.
When the network is connected, the “S” LED turns orange, while the “L” LED flickers in green.
8
RESET: Reset all paramaters to factory default settings.
NOTE:
When the camera is power up, press the “RESET” button for about 10 seconds, then all parameters,
including user name, password, IP address, port number, etc., will be reset to the factory default settings.

HIKVISION DS-2CD7153-E Specifications

General

Type	IP security camera
PTZ control	-
Day/night mode	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	2 MP
Maximum resolution	1600 x 1200 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720), 1600 x 1200 (UXGA)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Camera shutter speed	1/25 - 1/100000 s
Minimum illumination	0.1 lx
Field of view (FOV) angle	68 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.8
Fixed focal length	2.8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
