HIKVISION DS-2CD7253F-EIZ Installation Manual

Installation Manual of Network Camera
16
2). Loosen the knob on the ceiling mount to adjust the tilt angle [0°-90].
6. Adjust the Lens
1). Connect the VIDEO OUT interface of the camera to the debugging monitor.
2). Adjust the Zoom Lever and Focus Lever to obtain a perfect image on the monitor.
Knob

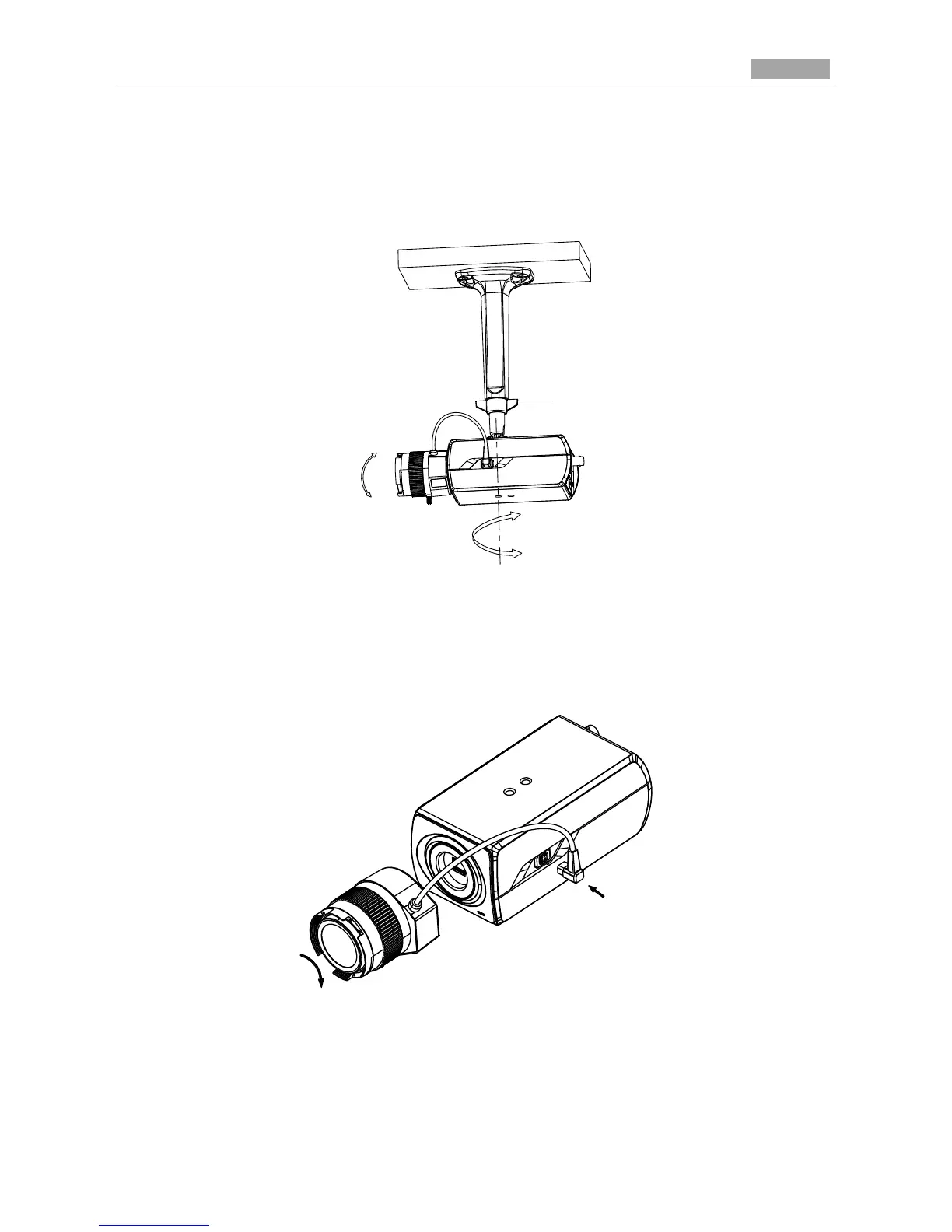

Figure 2-12 Install the Camera to the Mount and Adjust the Angle
 Wall Mounting
1. Install the lens (not supplied) to the camera and rotate it to get it tightened.
2. Plug the auto-iris cable to the auto-iris interface.
Figure 2-13 Install the Lens
3. Loosen the lock screw on the mount and remove the tilt adjust table from the wall mount.
