HIKVISION DS-2CD752MF-IFB User Manual

Quick Guide of Network Camera
© Hikvision Digital Technology Co., Ltd. All Rights Reserved.
7
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
Power supply
3
IN, G: Alarm input interface
1A, 1B: Alarm output interface
4
D+, D-: RS-485 interface
5
AUDIO IN, G: Audio input interface
AUDIO OUT, G: Audio output interface

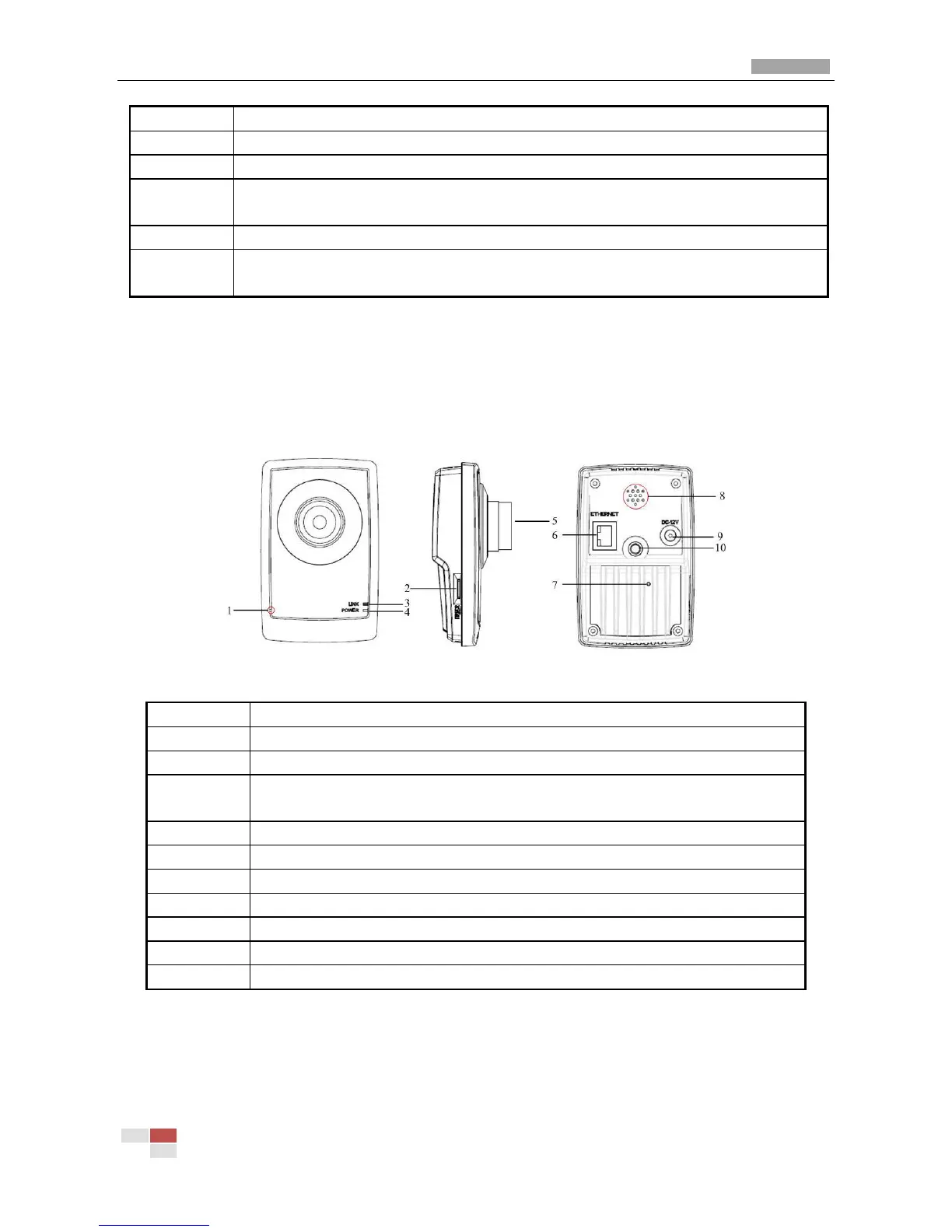

1.4 Cube Camera Interface Description
Figure 1.4.1
Serial NO.
Description
1
Microphone hole
2
Micro SD card solt
3
LINK: Network status LED indicator.
When the network is connected, the LED flickers in green.
4
Power LED indicator, It turns solid red when power is applied to the unit
5
Lens
6
ETHERNET: 10M / 100M self-adaptive Ethernet interface
7
RESET: Reset all parameters to factory default settings
8
Speaker hole
9
Power supply
10
Bracket mounting holes, used to fix the camera to the bracket

HIKVISION DS-2CD752MF-IFB Specifications

General

Model	DS-2CD752MF-IFB
IR Range	Up to 30m
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Digital Noise Reduction	3D DNR
Bit Rate	32 Kbps ~ 16 Mbps
Power Supply	PoE (802.3af)
Shutter Speed	1/100, 000s
Day & Night	ICR
Video Compression	H.264
Max. Image Resolution	2560 × 1440
Frame Rate	50Hz: 25fps (2560 × 1440)
Image Settings	Brightness, contrast, saturation
Network Storage	NAS
Alarm Trigger	Motion detection
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
Communication Interface	1 RJ45 10M/100Mbps Ethernet interface
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)
