1.2.3 Dome Camera Ⅲ

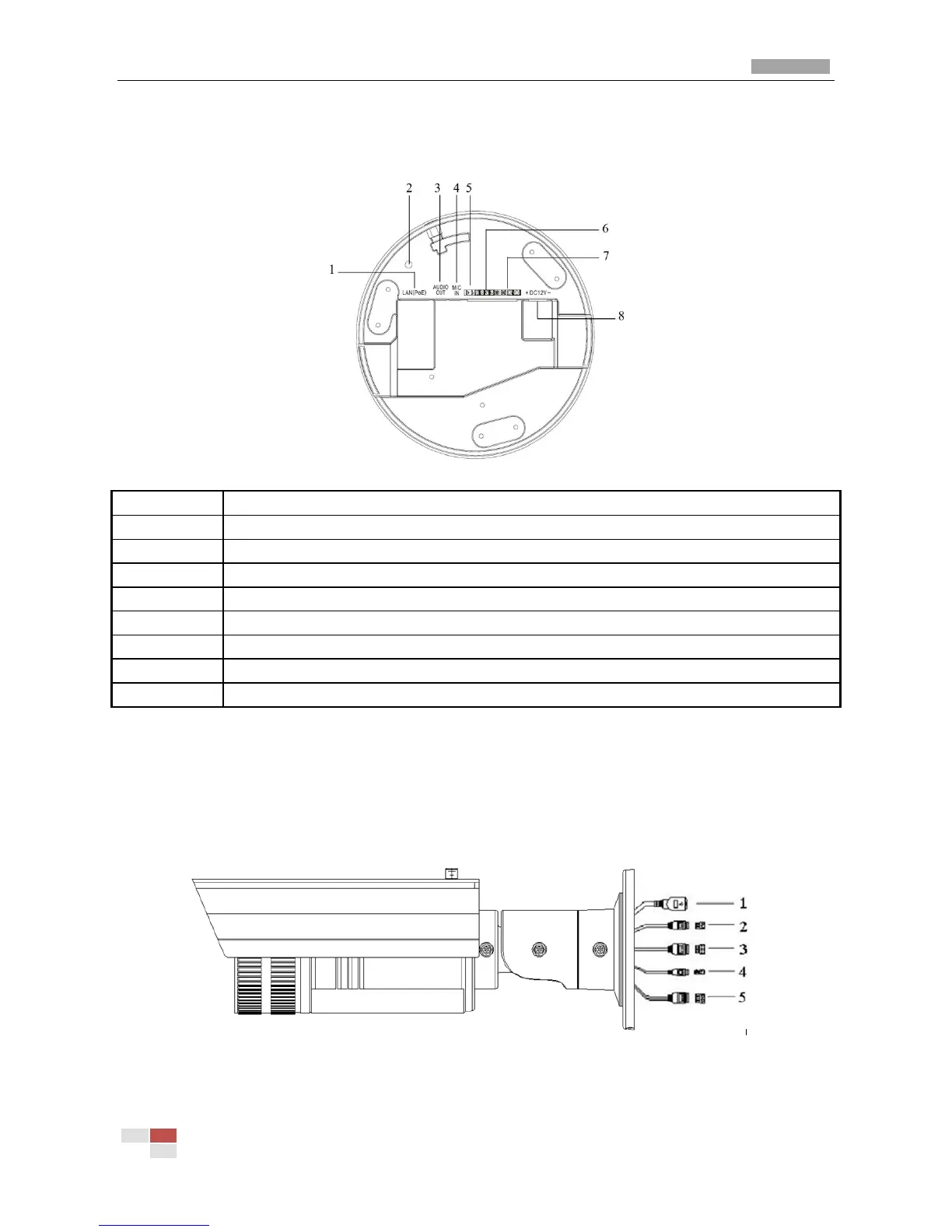

Figure 1.2.3
Serial NO.
Description
1
10M/100M self-adaptive Ethernet interface
2
INITIAL SET: Reset the camera
3
AUDIO OUT: Audio output interface
4
MIC IN: Audio input interface
5
D+, D-: RS-485 interface
6
1A, 1B, 2A, 2B: Alarm output interface
7
IN1, GND, IN2, GND: Alarm input interface
8
Power supply
1.3 Bullet Camera Interface Description
Figure 1.3.1

HIKVISION DS-2CD752MF-IFB Specifications

General

Model	DS-2CD752MF-IFB
IR Range	Up to 30m
Min. Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Digital Noise Reduction	3D DNR
Bit Rate	32 Kbps ~ 16 Mbps
Power Supply	PoE (802.3af)
Shutter Speed	1/100, 000s
Day & Night	ICR
Video Compression	H.264
Max. Image Resolution	2560 × 1440
Frame Rate	50Hz: 25fps (2560 × 1440)
Image Settings	Brightness, contrast, saturation
Network Storage	NAS
Alarm Trigger	Motion detection
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos
Communication Interface	1 RJ45 10M/100Mbps Ethernet interface
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)
