HIKVISION DS-2CD8133F-EW Installation Manual

Installation Manual of Network Camera
84
4.1.2 Installation
Steps:
1. Attach the wall mount (not provided) to the wall and tighten the screws to fix it.

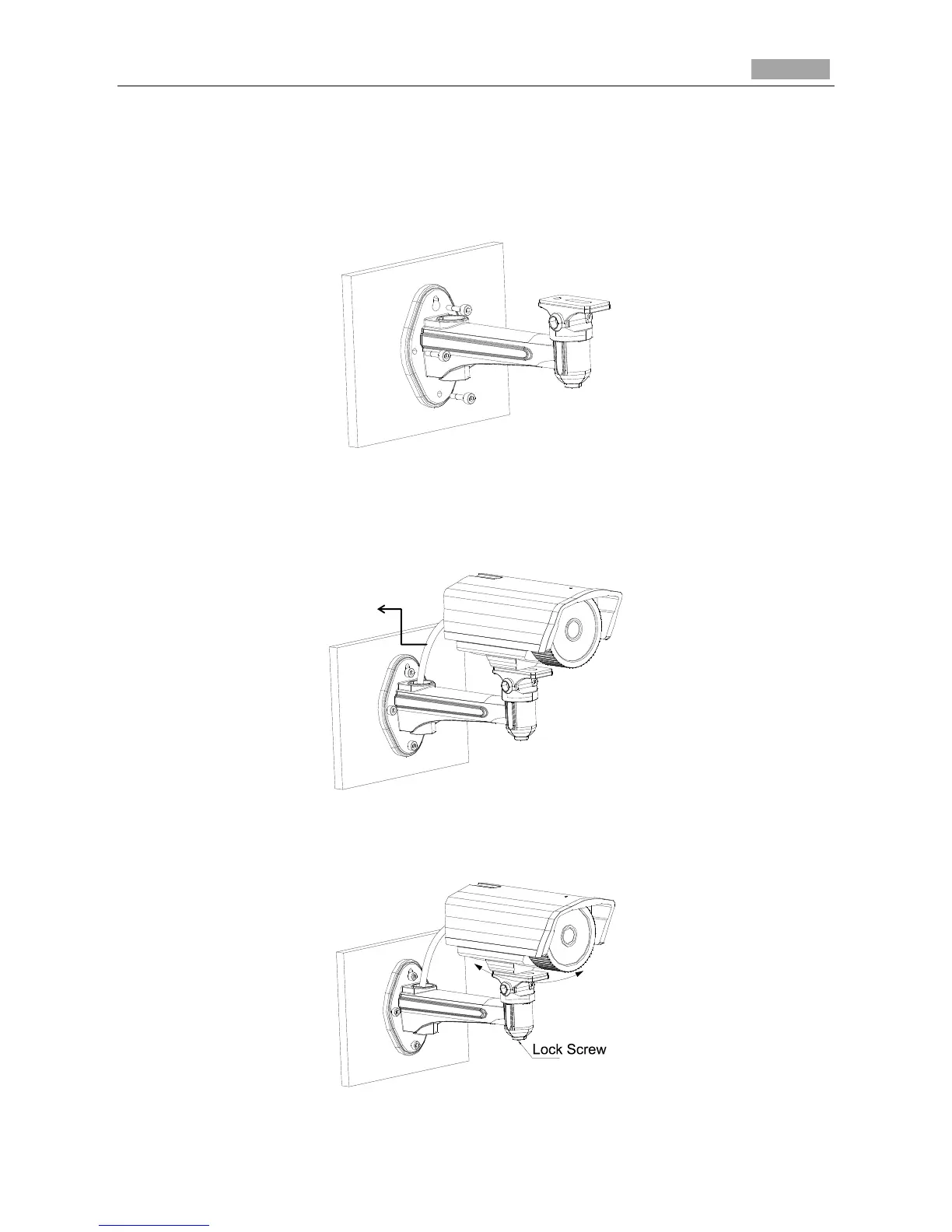

Figure 4-3 Install the Wall Mount
2. Secure the camera to the wall mount with set screws.
3. Route the cables for the camera as shown follows.
Figure 4-4 Mount the Camera
4. Loosen the panning lock screw to adjust the panning angle [0~360°].
Figure 4-5 Panning
