HIKVISION DS-2CD864-EI3 Installation Manual

Installation Manual of Network Camera
94
No.
Description
1
Sun Shield
2
Front Cover
3
Zoom and Focus Lever
4
IR LED
5
Lens
6
Air Vent
7
Video Output Interface
8
Integrated Bracket
9
Reset Button
10
Micro SD Card Slot
11
Power Interface
12
Network Interface
 Press RESET button about 10s when the camera is powering on or rebooting to restore the default
settings, including the user name, password, IP address, port No., etc.
 Some of the models support audio and alarm functions. The interfaces are shown as follows.
Audio Cable
Alarm Cables

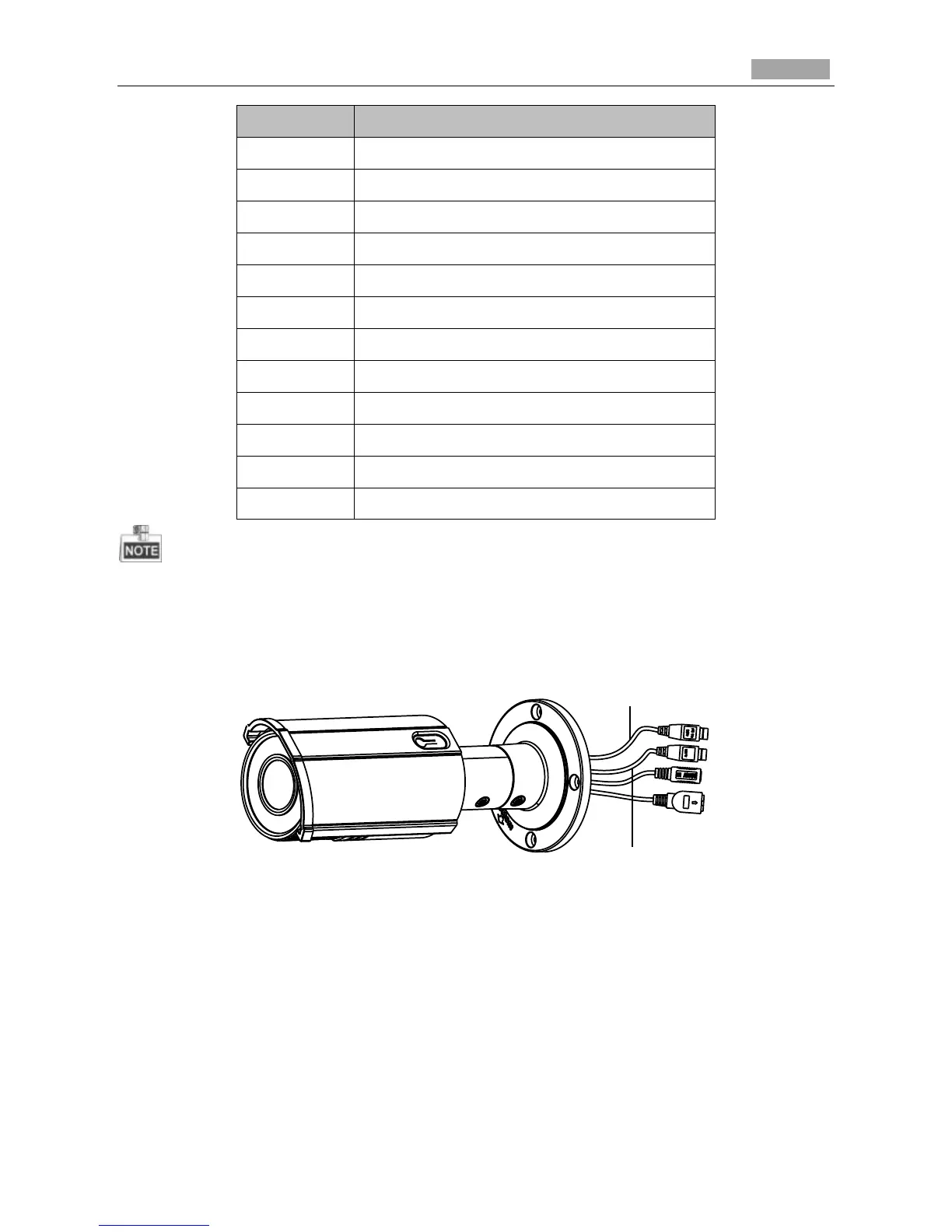

Figure 4-24 Audio and Alarm Interfaces
4.5.2 Installation
 SD Card Installation
Steps:
1. Loosen the lock screw on the sun shield to slide the sun shield according to the arrow direction as
shown in Figure 4-25 (left).
