Take DS-3E0326P-E/M as an example

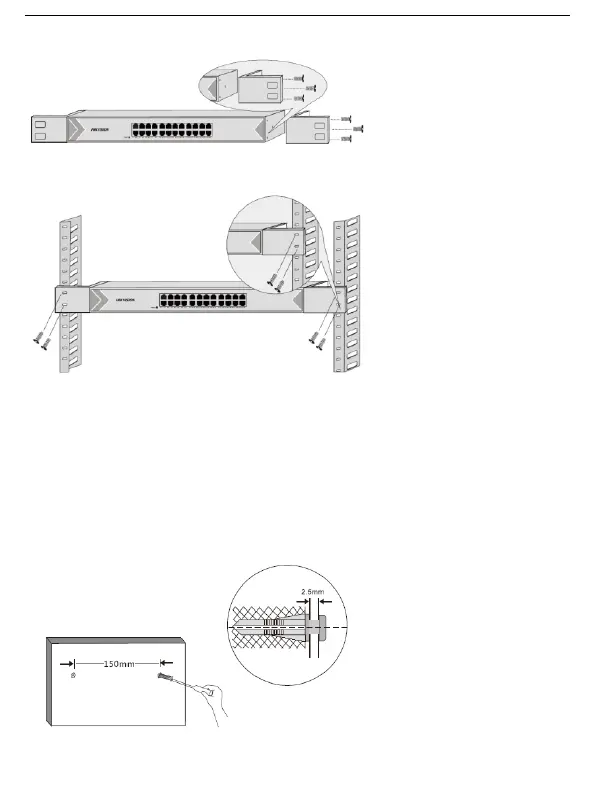

Step 3: Mount the switch at a proper height on the subrack with screws and fix the switch to the subrack with screws.
Take DS-3E0326P-E/M as an example
Wall Mounting
* Applicable only to DS-3E0108P-E or DS-3E0109P-E/M.
Procedure
Step 1: Create two horizontally aligned holes about 6 mm in diameter with percussion drill. The distance between the two
holes should be 150 mm for DS-3E0108P-E and 113.5mm for DS-3E0109P-E/M.
Step 2: Knock the expansion bolts into the holes with the rubber hammer until the expansion bolts are flush with the wall.
Step 3: Fix the screws with the Phillips screwdriver and keep at least 2.5mm distance between the inner edge of the screw
head and the outer edge of the expansion bolt to ensure that the switch can be hung on the screws firmly.
Step 4: Align the two hanging holes in the housing of the switch with the screws, and hook the switch firmly onto the
