User Manual of Network Video Recorder
14

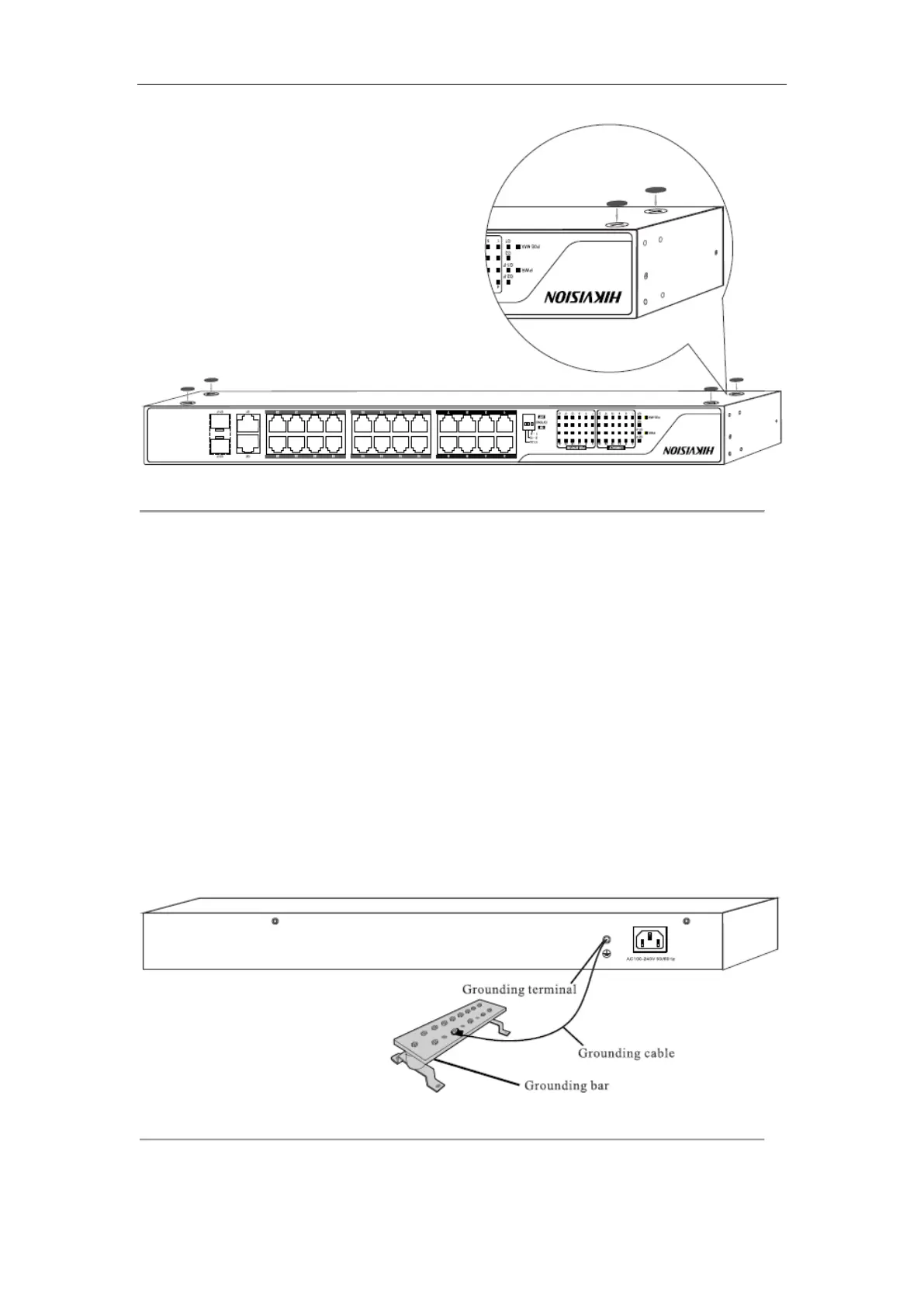

Figure 2.4 Paste the footpads
3) Then place the device correctly on the desktop.
2.3 Grounding
Grounding is not only important for lightning arresting and anti-interference, but for your own personal safety.
Please select the proper method to ground your device.
With grounding bar
If a grounding bar is available at the installation site, follow either of the two installations to ground the device.
A. Connect to the Grounding Bar Directly
1) Connect one end of the grounding cable to the binding post on the grounding bar.
2) Connect the other end of the grounding cable to the grounding terminal and fix the screw.
Figure 2.5 Connect to the grounding bar
