Figure 3-5 Cable connection at the console port
3.3.2 Connecting Gigabit Ethernet SFP Ports
The 24 SWITCH has 4 gigabit SFP ports. Each port has a corresponding indicator
for showing their LINK/ACT state. If the indicator is always on, the port is normally
linked; if the indicator flickers, the data is forwarded through the port. In use the
SFP optical module can be connected to the SFP optical module and connected to
other Ethernet terminal devices through the optical cable.
Figure 3-6 Gigabit SFP ports connect to other Ethernet terminal devices
3.3.3 Connecting 1000M Ethernet Base-T ports
24 SWITCH provides 24 10/100/1000MRJ45 ports. Each port corresponds to one
LINK/ACT indicator. In use, the ports can connect other UT terminal devices
through the UTP port and the direct-through or cross network cable. The
numbering order of the pins in the UTP port is the same as the console port. See
the following figure:

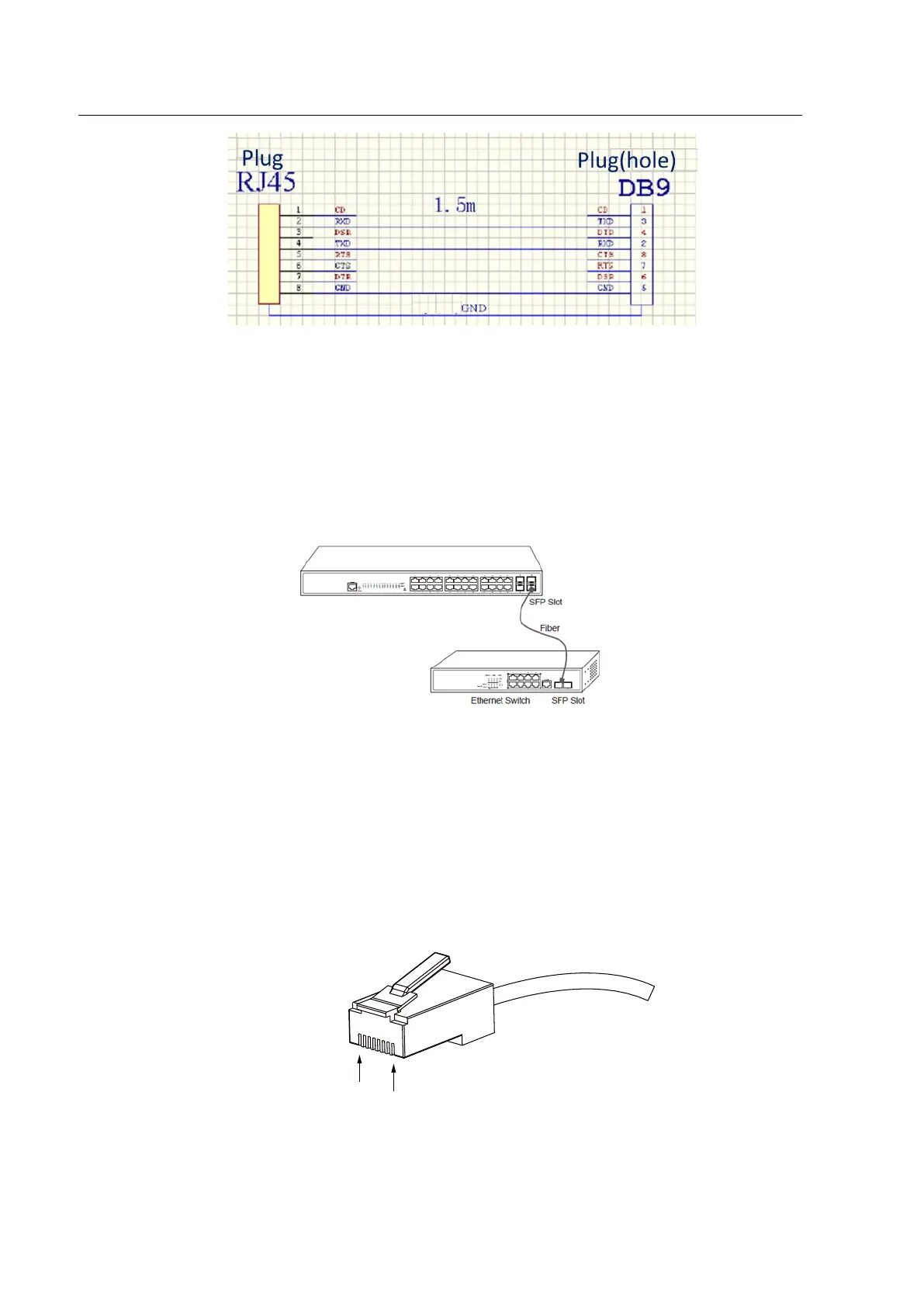

Figure3-7 RJ-45 Connector of the console port
