Quick Operation Guide of DS-6700 Series Audio/Video Encoder
17

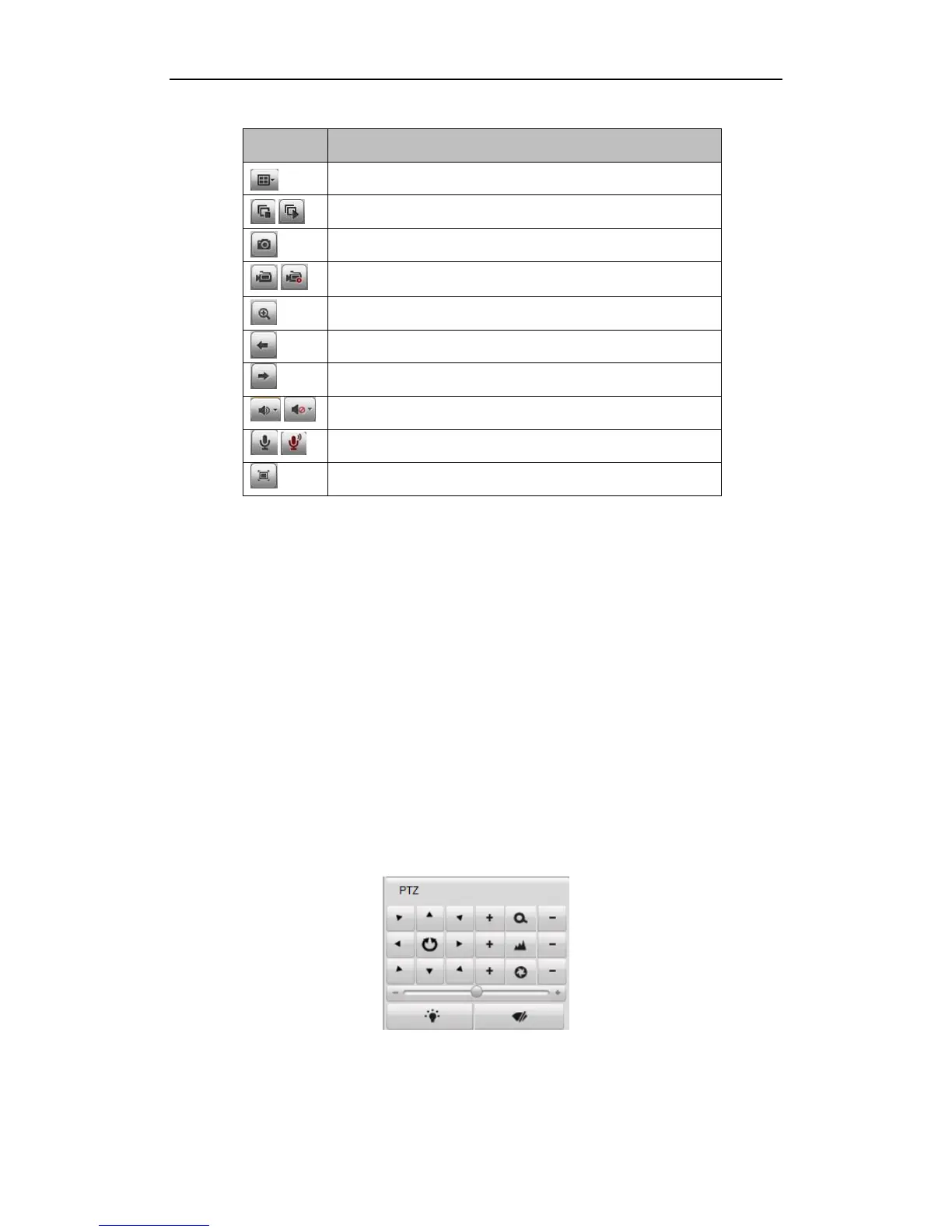

Refer to the following table for the description of buttons on the live view window:
Note: Before using two-way audio function or recording with audio, please select the Stream Type to Video &
Audio under Remote Configuration > Camera Settings >Video Settings.
Operating PTZ Control
Before you start:
1. Make sure the encoder is connected with the camera/dome which supports PTZ function. Connect the R+ and
R
-
terminals of the pan/tilt unit or speed dome to RS-485 T+ and RS-485 T- terminals of the DS-6700
respectively.
2. The baud rate, PTZ control and address configured in the RS-485 Settings interface (Remote
Configuration > Serial Port Settings > 485 Serial Port) must be the same with the parameters of the
connected pan/tilt unit or speed dome.
Operating PTZ Control
In live view mode, you can use the PTZ control buttons to realize pan/tilt/zoom control of the camera lens.
There will be 8 directional buttons (up, down, left, right, upper left, upper right, bottom left, bottom right) on the
display window when the mouse is located in the relative positions.
Click on the directional buttons to control the pan/tilt movement.
Click the zoom/iris/focus buttons to realize lens control.
Refer to the following table for description of PTZ control buttons:
