HIKVISION DS-7100NI-Q1/P Series User Manual

Network Video Recorder User Manual
86
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the button to show the general settings of the PTZ control.

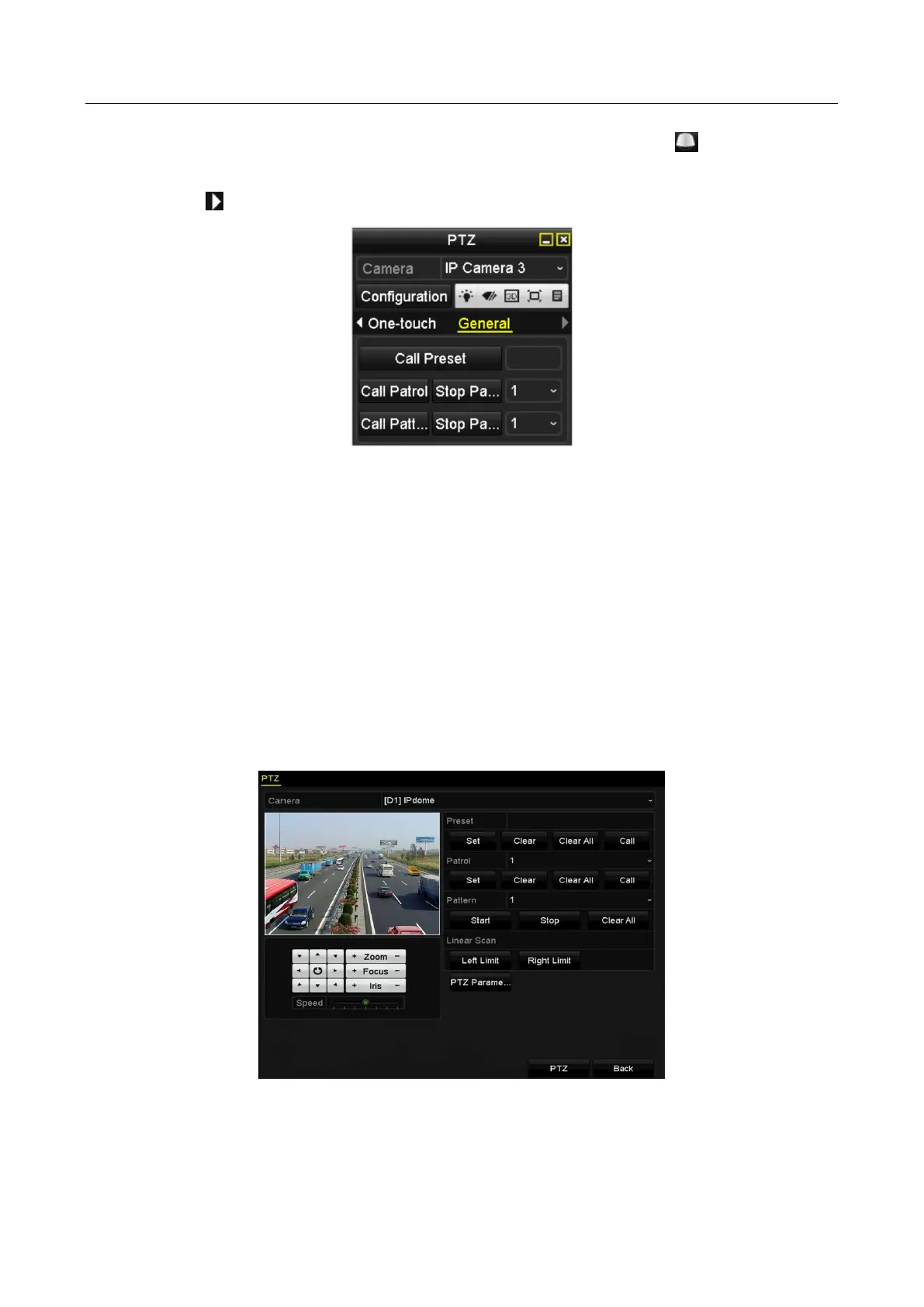

Figure 4-7 PTZ Panel - General
Step 3 Select a patrol in the dropdown list and click the Call Patrol button to call it.
Step 4 You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose:
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Step 1 Enter the PTZ Control interface.
Menu > Camera > PTZ
Figure 4-8 PTZ Settings
Step 2 Choose pattern number in the dropdown list.
