Network Video Recorder User Manual
207
Receiver: The name of user to be notified.
Receiver’s Address: The Email address of user to be notified.
Enable Attached Picture: Check the checkbox of Enable Attached Picture if you want to send
email with attached alarm images. The interval is the time of two adjacent alarm images. You
can also set SMTP port and enable SSL here.
Interval: The interval refers to the time between two actions of sending attached pictures.
Step 6 Click Apply button to save the Email settings.
Step 7 You can click Test button to test whether your Email settings work.
12.2.8 Configuring NAT
Purpose:
Two ways are provided for port mapping to realize the remote access via the cross-segment
network, UPnP™ and manual mapping.
UPnP
TM
Universal Plug and Play (UPnP™) can permit the device seamlessly discover the presence of other
network devices on the network and establish functional network services for data sharing,
communications, etc. You can use the UPnP™ function to enable the fast connection of the device
to the WAN via a router without port mapping.
Before you start:
If you want to enable the UPnP™ function of the device, you must enable the UPnP™ function of
the router to which your device is connected. When the network working mode of the device is set
as multi-address, the Default Route of the device should be in the same network segment as that
of the LAN IP address of the router.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the NAT tab to enter the port mapping interface.

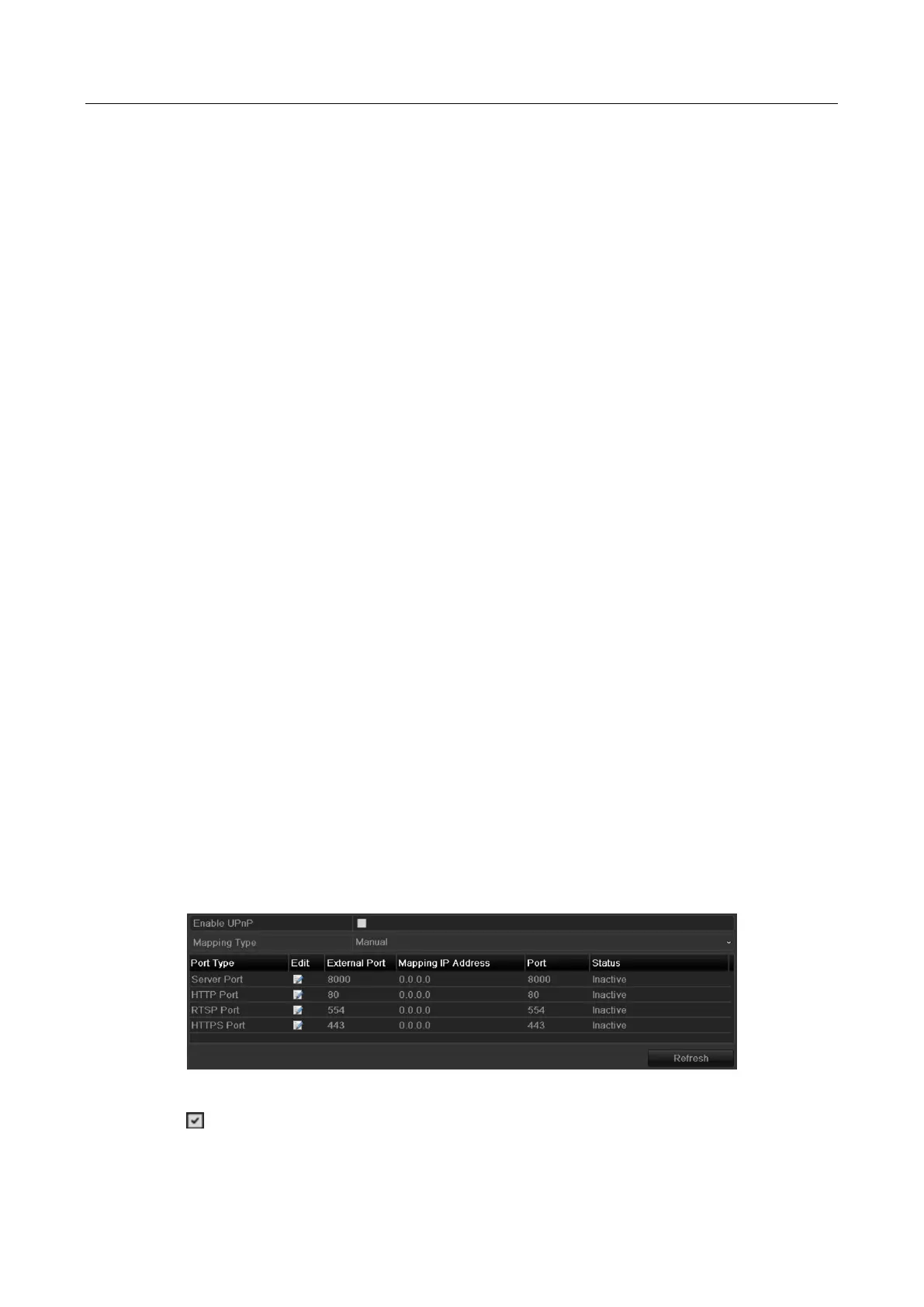

Figure 12-18 UPnP™ Settings Interface
Step 3 Check checkbox to enable UPnP™.
Step 4 Select the Mapping Type as Manual or Auto in the drop-down list.
