User Manual of Network Video Recorder
46

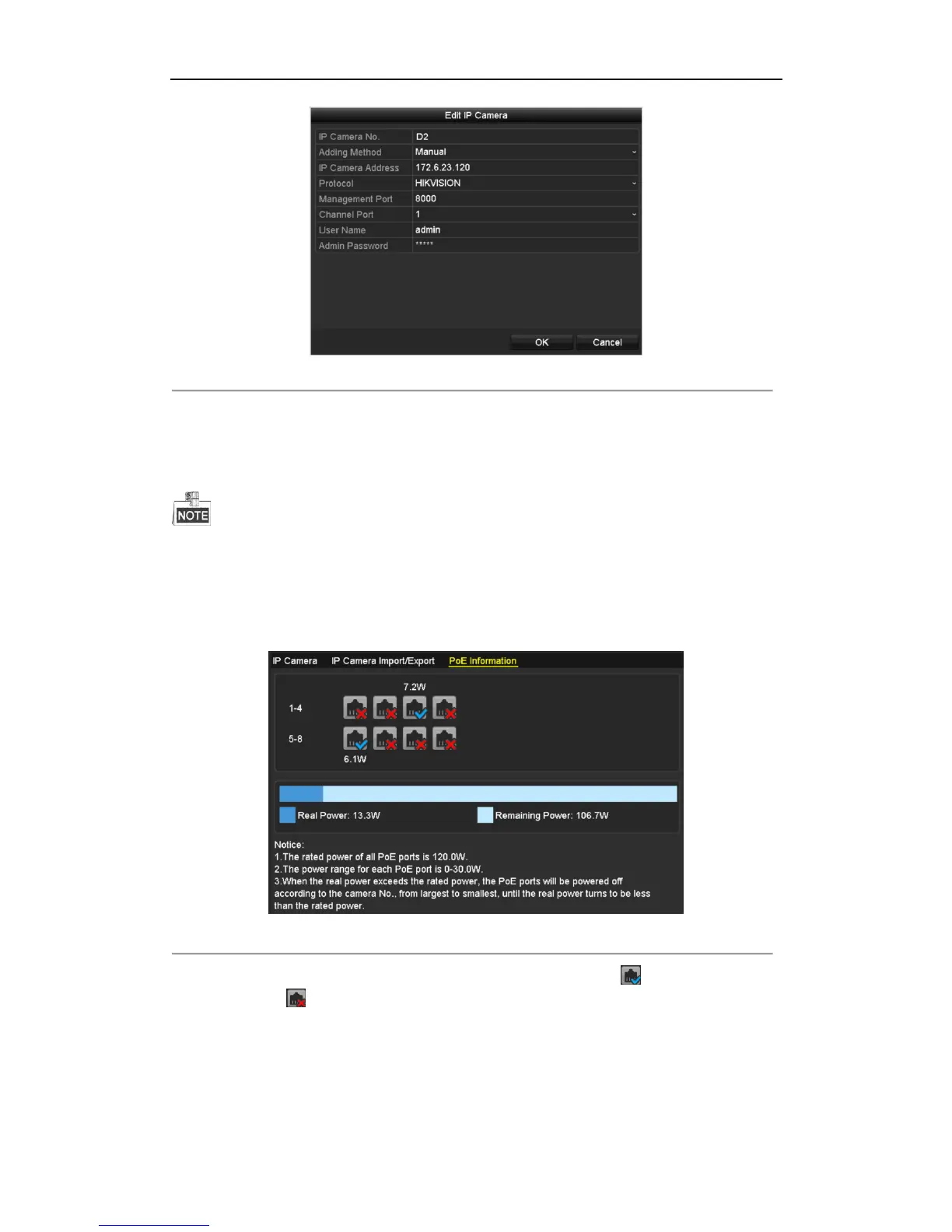

Figure 2. 32 Edit IP Camera Interface - Manual
2.5.5 Checking the PoE Information
This section is only applicable to DS-7600NI-SE/P models.
Steps:
1. Enter the Camera Management interface.
Menu > Camera > Camera
2. Click the PoE Information tab to view the PoE status.
Figure 2. 33 PoE Information Interface
3. You can see the PoE connection status: the connected PoE port is displayed as , and the disconnected one
is displayed as . Besides, the power cunsumption of each port and all ports are also be clearly displayed.
