Digital Video Recorder Quick Start Guide
22
2.3 RS-485 and Controller Connection
Typical Connection:

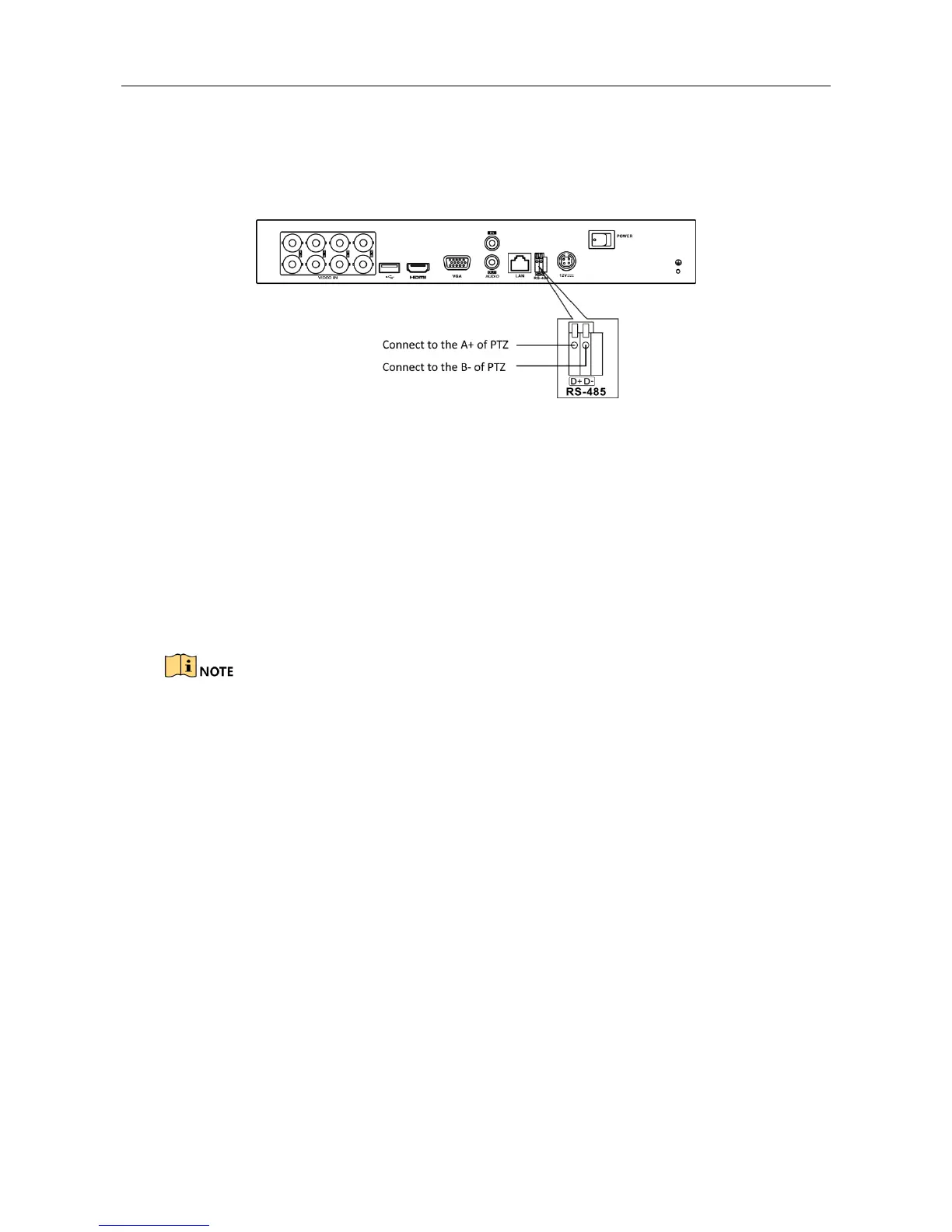

Figure 2-5 Controller Connection A
To connect PTZ to the DVR:
Step 1 Disconnect pluggable block from the RS-485 terminal block.
Step 2 Press and hold the orange part of the pluggable block; insert signal cables into slots and
release the orange part. Ensure signal cables are in tight.
Step 3 Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block.
Fasten stop screws.
Step 4 Connect pluggable block back into terminal block.
Make sure both the controller and DVR are grounded.
