HIKVISION DS-7108HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
30

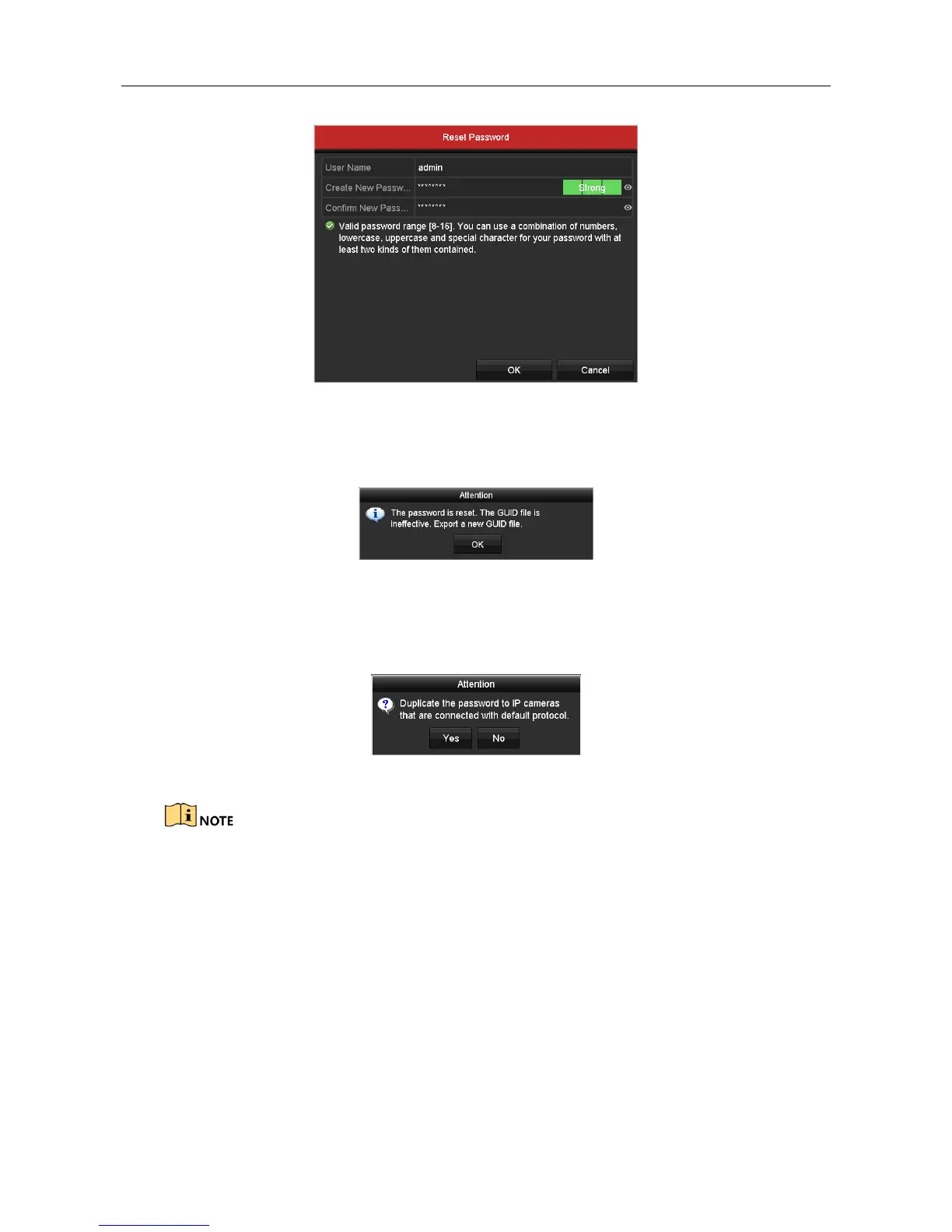

Figure 3-14 Reset Password
2) Input the new password and confirm the password.
3) Click OK to save the new password. Then the Attention box pops up as shown below.
Figure 3-15 GUID File Imported
4) Click OK and the Attention box as below pops up to remind you to duplicate the
password of the device to IP cameras that are connected with default protocol. Click
Yes to duplicate the password or No to cancel it.
Figure 3-16 Duplicate the Password

If you want to retrieve the password when you forget it, you must export the GUID file first.

Once the password is reset, the GUID file becomes ineffective. You can export a new GUID
file.
3.5.2 User Logout
Purpose:
After logging out, the monitor turns to the live view mode and if you want to perform any
operations, you need to enter user name and password log in again.
Step 1 Enter the Shutdown menu.

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
