For –F series DVR, you do not need to configure the signal inputs. The analog signal inputs
(Turbo HD, AHD, HDCVI, CVBS) and IP signal input can be recognized and connected
automatically.

For HQHI series DVR, the 3 MP signal can be accessed for the first channel of DVR with 4-ch
video inputs, the first 2 channels of DVR with 8-ch video inputs and the first 4 channels of
DVR with 16-ch video inputs.

For all the –F series DVR, when Turbo HD, AHD, or HDCVI input is connected, the
information including the resolution and frame rate (e.g., 720P25) will be overlaid on the
bottom right corner of the live view for 5 seconds. When CVBS input is connected, the
information such as NTSC or PAL will be overlaid on the bottom right corner of the live view
for 5 seconds. When there is no video signal for the channel, the connectable video signal
type message will not be displayed on the screen. When the unsupported signal input is
connected, no video message is displayed on the screen. You can refer to the specifications
for the supported resolution of the analog signal input types.

For DS-7300/8100/9000HUHI-F/N and DS-7300/8100HQHI-F/N series DVR, disabling one
analog channel will add one IP channel. For DS-7300/8100HUHI-F/N and
DS-7300/8100HQHI-F/N series, the accessible IP channels are X+2 (X refers to the disabled
analog channel or channels of the DVR.). For DS-9004HUHI-F8/N series, the accessible IP
channels are X+6 (X refers to the disabled analog channel or channels of the DVR.). For
DS-9008HUHI-F/N series, the accessible IP channels are X+10 (X refers to the disabled
analog channel or channels of the DVR.). For DS-9016HUHI-F/N series, the accessible IP
channels are X+18 (X refers to the disabled analog channel or channels of the DVR.) and the
max. IP channels are 32.
3.8 Network Settings
Purpose:
Network settings must be properly configured before you operate DVR over network.
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network

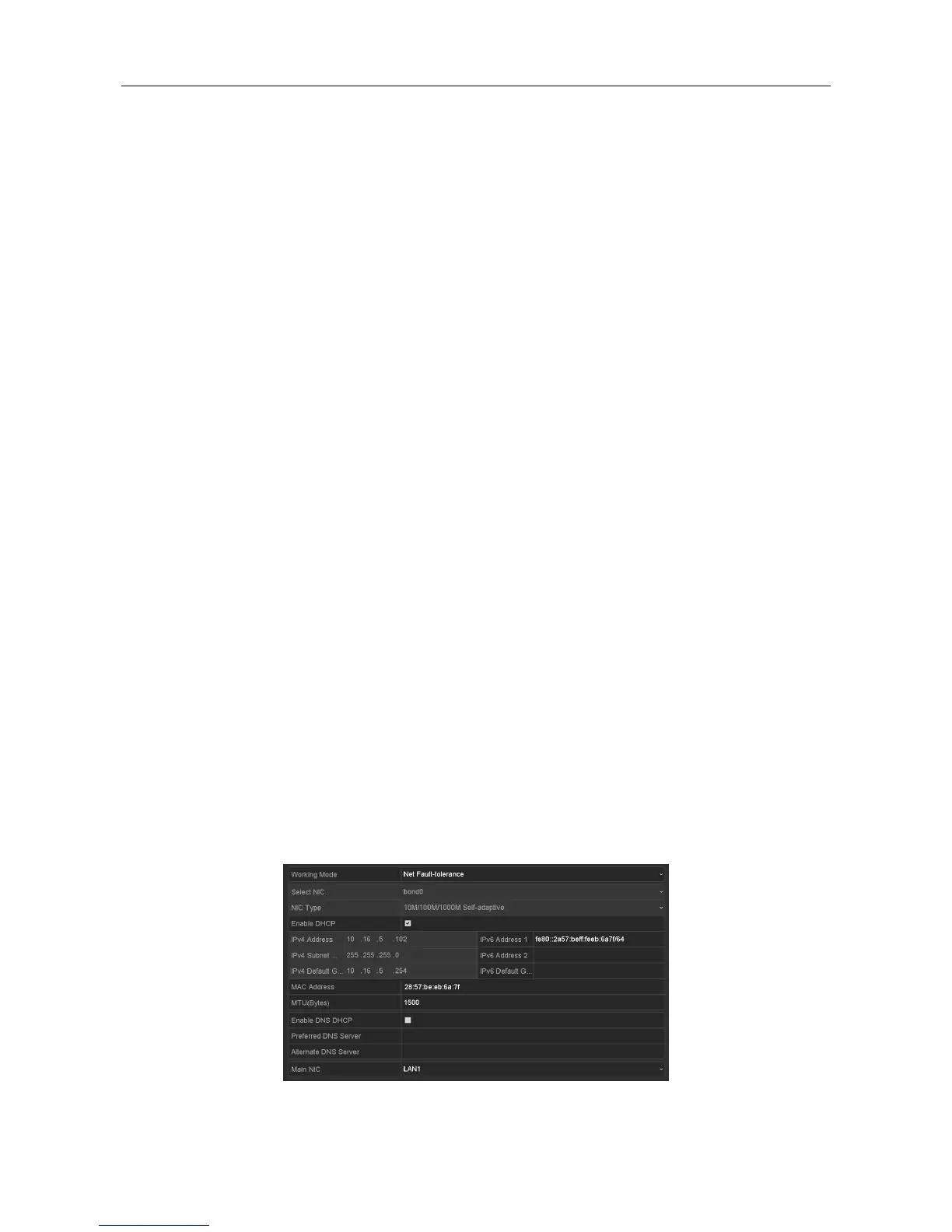

Figure 3-21 Network Settings

HIKVISION DS-7108HGHI-F1 Specifications

General

Voltage	12 V
Certification	CE
Product color	White
Channels quantity	8 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video in	BNC
Video out	HDMI, VGA
Audio input	1x RCA
BNC input ports	8
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	DC
Power consumption (typical)	12 W

Weight and Dimensions

Weight	800 g
Dimensions (WxDxH)	200 x 200 x 45 mm
