HIKVISION DS-7116HGHI-F1 Quick Start Guide

Digital Video Recorder Quick Start Guide
37

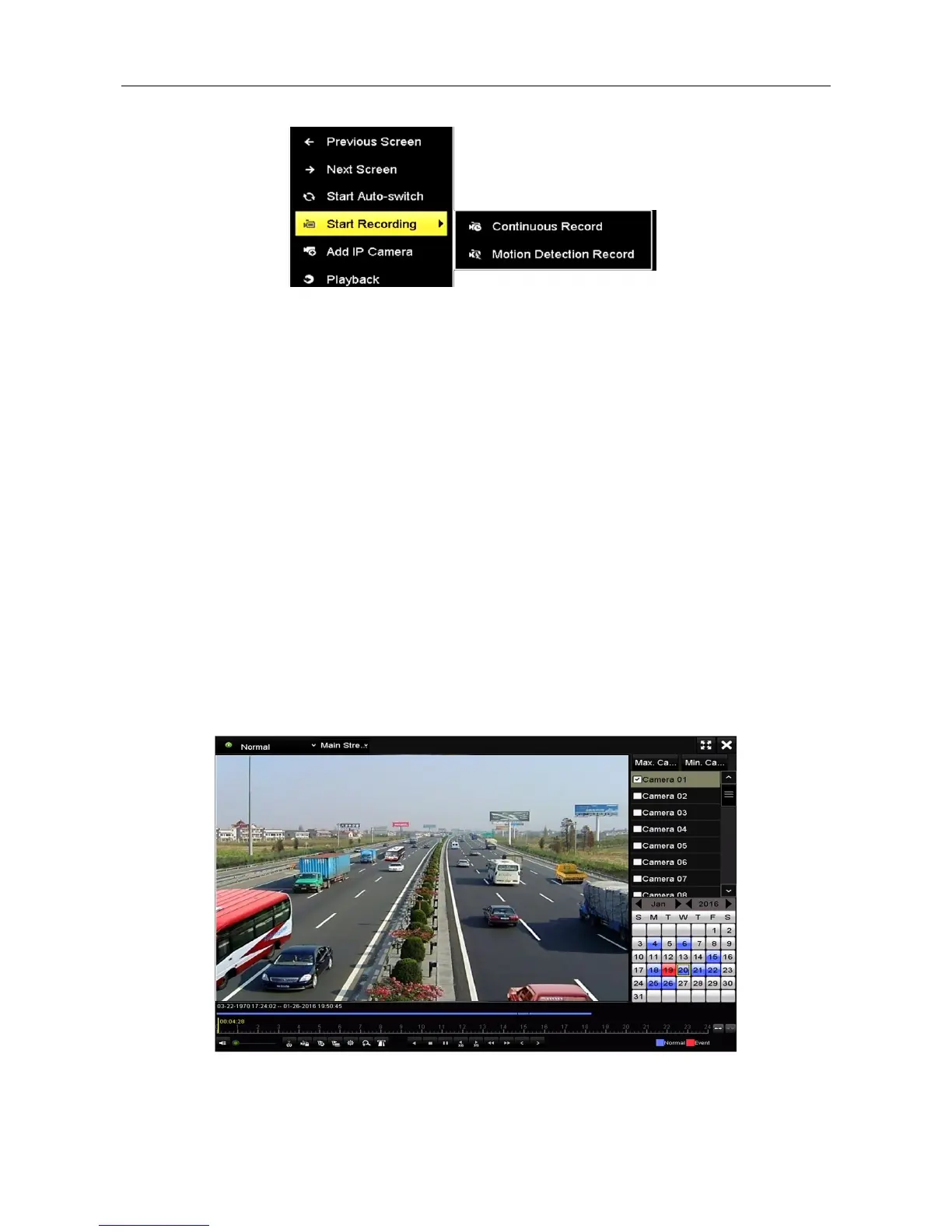

Figure 3-24 Start Recording from Right-click Menu
Step 2 Click the Yes button in the pop-up Attention message box to confirm the settings. All the
channels will start to record in the selected mode.
3.12 Playback
The recorded video files and pictures on the hard disk can be played back in the following modes:
instant playback, all-day playback for the specified channel, and playback by
normal/event/smart/tag/system logs/sub-periods/external file search/picture.
Step 1 Enter playback interface.
Menu > Playback
Or select Playback from the right-click menu.
Step 2 Check the checkbox of channel(s) in the channel list and then double-click to select a date on
the calendar.
Step 3 (Optional) Use the toolbar in the bottom part of Playback interface to control playing
progress.
Figure 3-25 Playback Interface

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
