HIKVISION DS-7116HQHI-F1/N User Manual

Digital Video Recorder User Manual
131

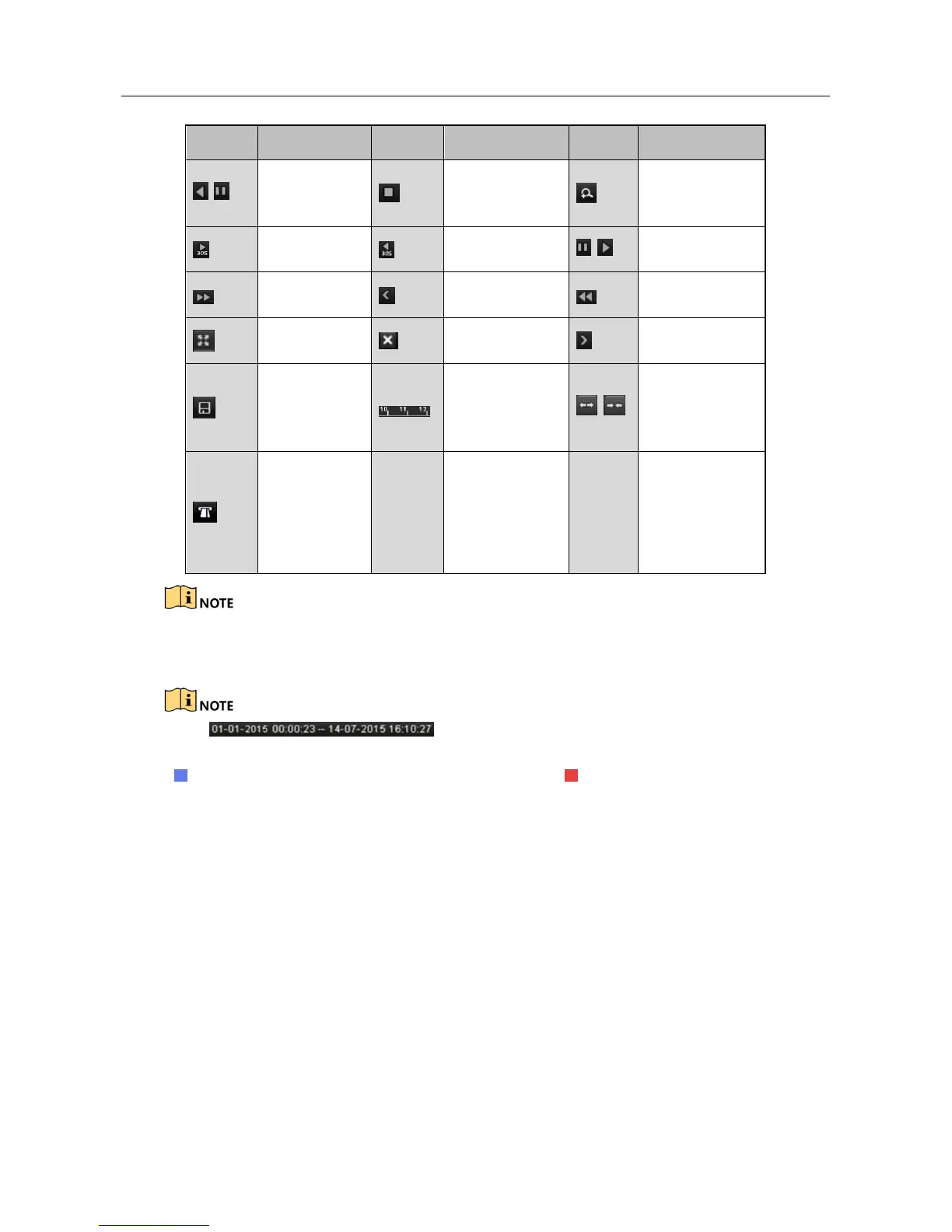

Button Operation Button Operation Button Operation
/
Reverse
play/Pause
Stop Digital Zoom
30s forward 30s reverse / Pause/Play
Fast forward Previous day Slow forward
Full Screen Exit Next day
Save the clips Process bar
/
Scaling
up/down the
time line
Enable/
Disable POS
information
overlay
This enable/disable POS overlay function is supported by DS-7300/8100HQHI-F/N and
DS-7300/8100/9000HUHI-F/N series DVR only. When the POS is enabled when playing back, the
POS information will be overlain on the video. And the keyword searching is supported.

The indicates the start time and end time of the record
files.

represents normal recording (manual or schedule); represents event recording
(motion, alarm, motion | alarm, motion & alarm).

Playback progress bar: use the mouse to click any point of the progress bar to locate special
frames.
6.1.3 Playing Back by Event Search
Purpose
Play back record files on one or several channels searched out by restricting event type (motion
detection, alarm input or VCA). Channel switch is supported.
Step 1 Enter the Playback interface.
Menu>Playback

HIKVISION DS-7116HQHI-F1/N Specifications

General

Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Power consumption (typical)	20 W
Voltage	12 V
Product color	White
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Video input channels	16 channels
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1200 g
Dimensions (WxDxH)	285 x 210 x 45 mm
