Digital Video Recorder User Manual
89
Chapter 4 PTZ Controls
4.1 Configuring PTZ Settings
Purpose
Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should
be done before you control the PTZ camera.
Step 1 Enter the PTZ Settings interface.
Menu >Camera> PTZ

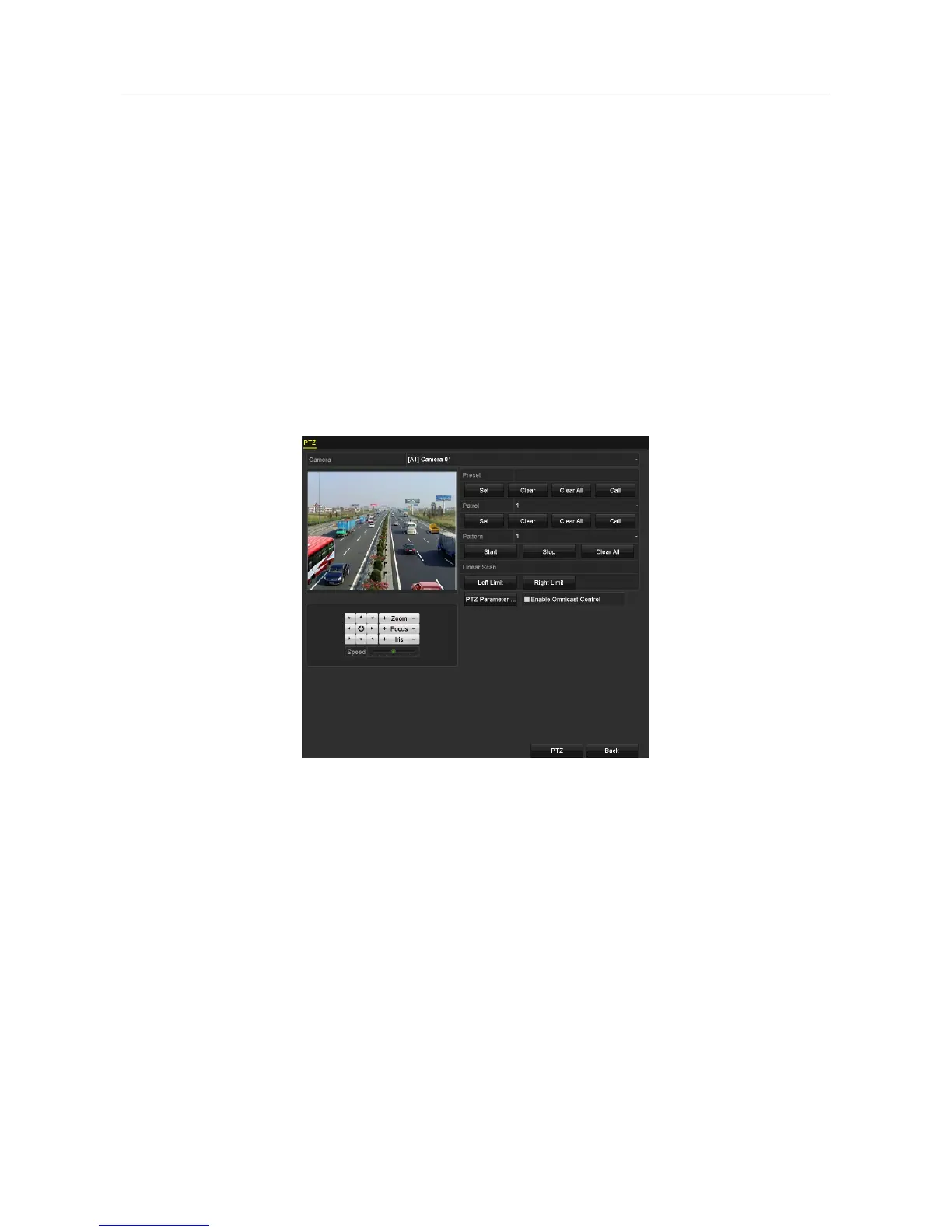

Figure 4-1 PTZ Settings
Step 2 Select the camera for PTZ setting in the Camera dropdown list.
Step 3 Click the PTZ Parameters button to set the PTZ parameters.

Table of Contents

Other manuals for HIKVISION DS-7116HQHI-F1/N

Preview: Quick Start Guide
Quick Start Guide42 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7116HQHI-F1/N and is the answer not in the manual?

HIKVISION DS-7116HQHI-F1/N Specifications

General IconGeneral
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Power consumption (typical)20 W
Voltage12 V
Product colorWhite
Rack capacity1U
Audio output channels1.0 channels
Video compression formatsH.264, H.264+
Video input channels16 channels
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight1200 g
Dimensions (WxDxH)285 x 210 x 45 mm
