HIKVISION DS-7308HWI-SH User Manual

Quick Operation Guide of DS-7200-SH/SV/SL and DS-7300/8100-SH Series DVR
28
Menu Operation

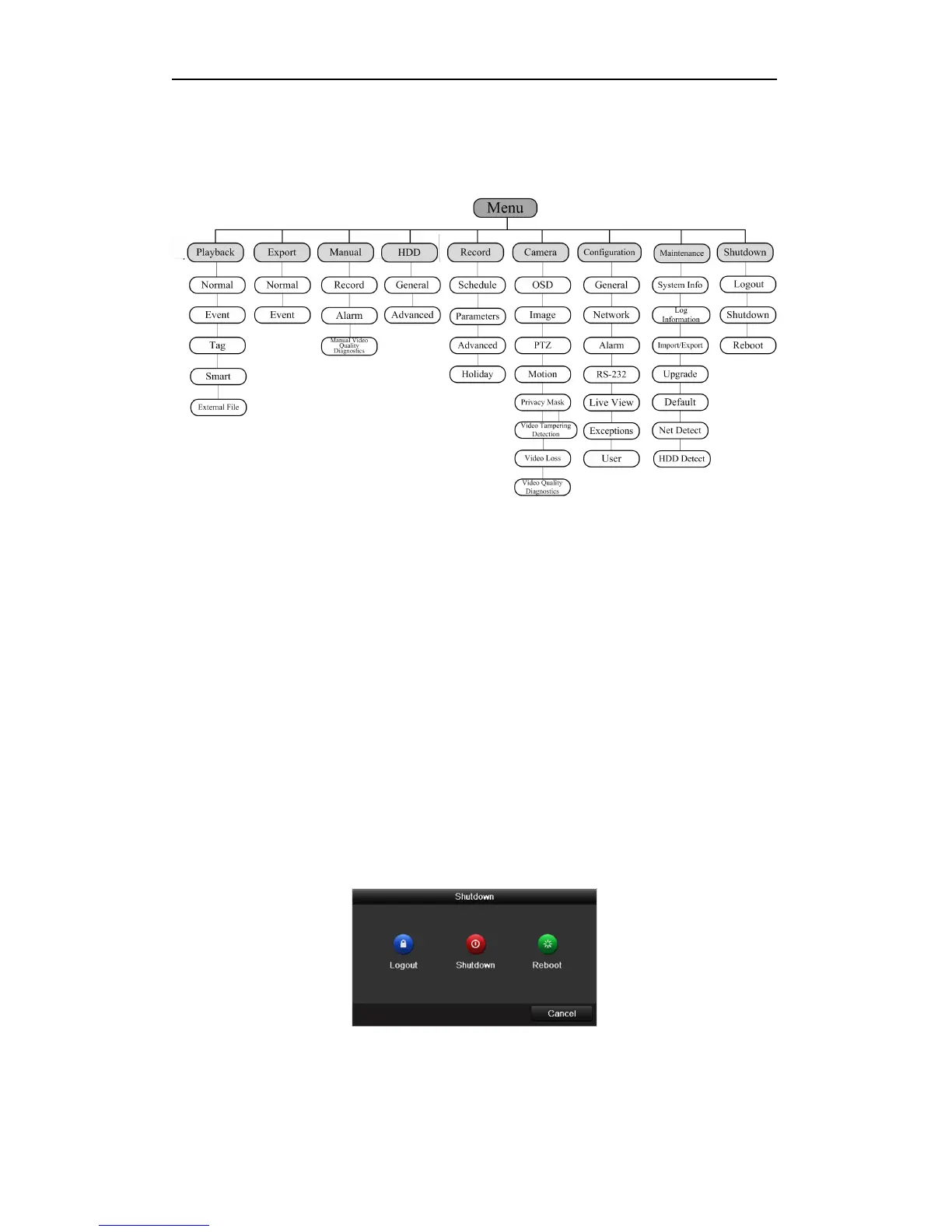

Menu Structure
Note: The menu structure varies according to different models.
Startup and Shutdown
Proper startup and shutdown procedures are crucial to expanding the life of the DVR.
Before you start:
Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground
connection is working properly.
Starting up the device:
Steps:
1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) be used in conjunction with the device.
2. Press the POWER button on the rear panel. The Power indicator LED should turn green indicating that the
unit begins to start up.
Shutting down the device:
Steps:
1. Enter the Shutdown menu.
Menu > Shutdown
2. Click the Shutdown button to enter the following dialog box:

HIKVISION DS-7308HWI-SH Specifications

General

Product color	Black
Channels quantity	8 channels
Maximum frame rate	30 fps
Total storage capacity	12000 GB
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
Audio input	4
RS-485 ports	1
BNC input ports	8
BNC output ports	2
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power requirements	100-240 VAC, 5A, 50-60Hz
Power consumption (typical)	30 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
