HIKVISION DS-7608NI-Q1/8P User Manual

Network Video Recorder User Manual
201
14.4 Importing/Exporting Configuration File
Purpose:
The configuration files of the NVR can be exported to local device for backup; and the
configuration files of one NVR can be imported to multiple NVR devices if they are to be
configured with the same parameters.
14.4.1 Exporting Configuration File
Before you start:
Insert a USB flash disk to the device. For importing the configuration file, the configuration file
must be available in the USB flash disk.
Step 1 Enter the Export Configuration File interface.
Menu > Maintenance > Export

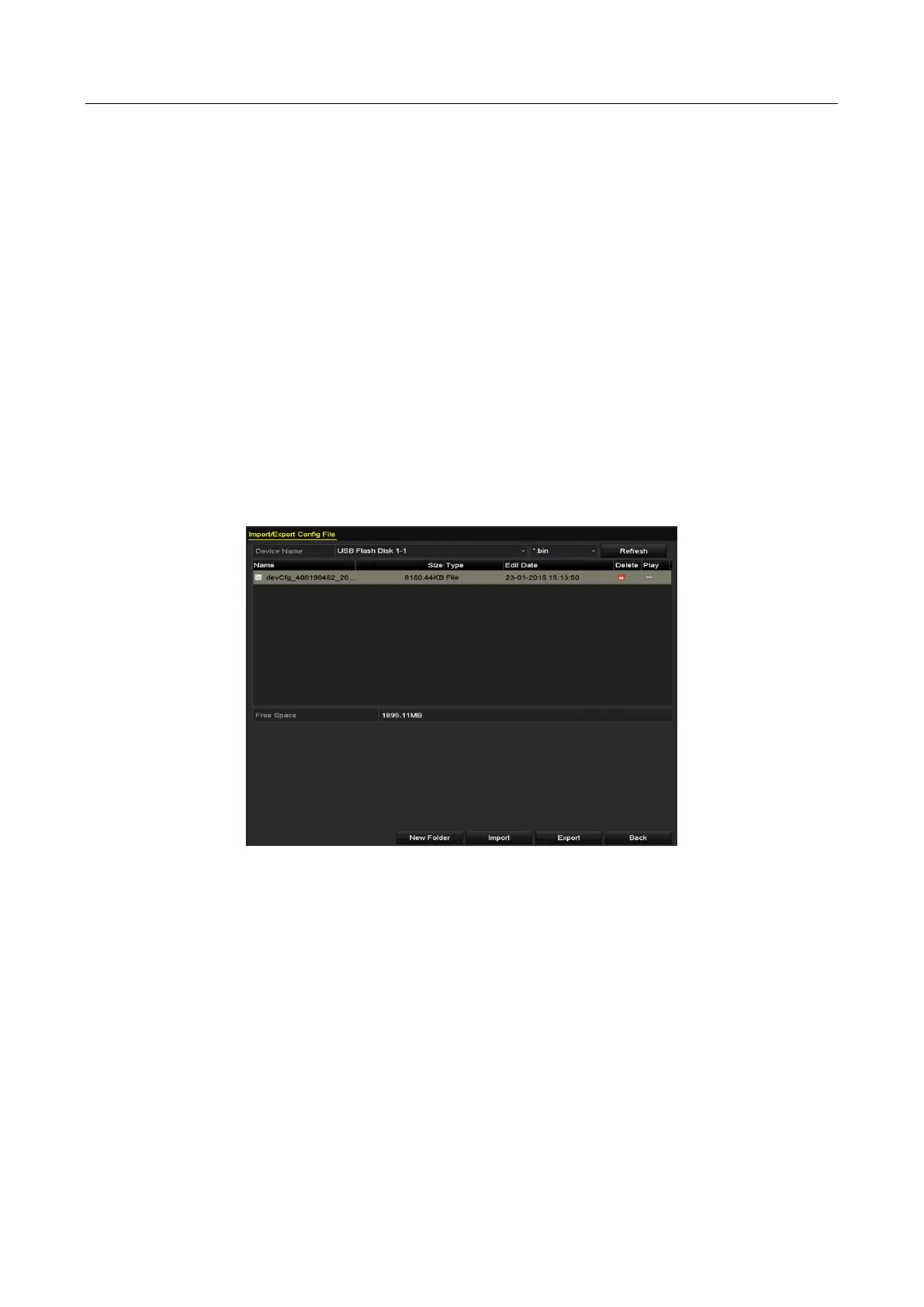

Figure 14-6 Import/Export Config File
Step 2 Select a USB flash disk.
Step 3 Click Export.
Step 4 Input the admin password.
Step 5 Export configuration file to the selected local backup device.
14.4.2 Importing Configuration File
Before you start:
Insert a USB flash disk with the configuration file to the device.
Step 1 Enter the Export Configuration File interface.

HIKVISION DS-7608NI-Q1/8P Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Rack capacity	1U
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	75 W

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
