HIKVISION DS-7608NI-Q2/8P User Manual

Network Video Recorder User Manual
200

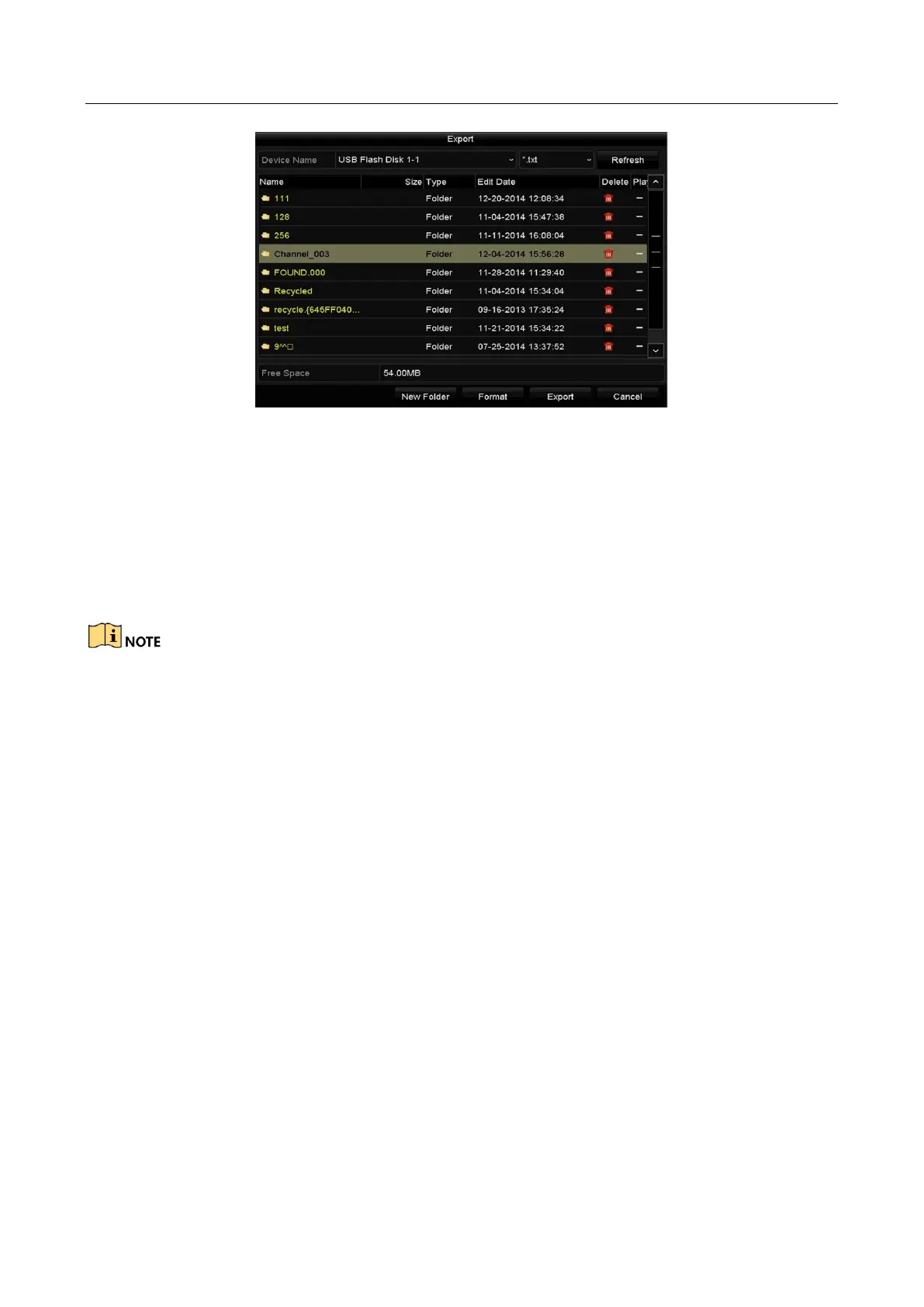

Figure 14-5 Export Log Files
Step 7 Select the backup device from the dropdown list of Device Name.
Step 8 Select the format of the log files to be exported. Up to 15 formats are selectable.
Step 9 Click the Export to export the log files to the selected backup device.
You can click the New Folder button to create new folder in the backup device, or click the
Format button to format the backup device before log export.
Please connect the backup device to NVR before operating log export.
14.3 Importing/Exporting IP Camera Info
Purpose:
The information of added IP camera can be generated into an excel file and exported to the local
device for backup, including the IP address, manage port, password of admin, etc.. And the
exported file can be edited on your PC, like adding or deleting the content, and copy the setting to
other devices by importing the excel file to it.
Step 1 Enter the camera management interface.
Menu > Camera > IP Camera Import/Export
Step 2 Click the IP Camera Import/Export tab, the content of detected plugged external device
appears.
Step 3 Click the Export button to export configuration files to the selected local backup device.
Step 4 To import a configuration file, select the file from the selected backup device and click the
Import button. After the importing process is completed, you must reboot the NVR.

HIKVISION DS-7608NI-Q2/8P Specifications

General

DHCP client	Yes
Input bandwidth	80 Mbit/s
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	1
Video input channels	8 channels
Supported resolutions	1024 x 768, 1280 × 720, 1280 × 1024, 1920 × 1080, 1600 × 1200, 3840 × 2160
Video recording modes	720p, 1080p
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Product color	Black
Rack capacity	1U
LED indicators	LAN, Power, Status
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	80 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
