HIKVISION DS-9016HQHI-SH User Manual

User Manual of Digital Video Recorder
115
This function is supported by DS-7300/8100/9000 series DVR.
Steps:
1. Enter Record>Advanced and set the usage of eSATA HDD at “Export”.
Menu>Record>Advanced
Choose eSATA and set its usage at Export. Click
Yes when pop-up message box “System will reboot
automatically if the usage of eSATA is changed. Continue?”
The usages of eSATA HDD contain Record and Export. And changes in usage will take effective after
rebooting the device.
2. Enter Export interface.
Menu>Export>Normal
Set search condition and click
Search button to enter the search result interface.
3. Select record files you want to back up.
Click button to play the record file if you want to check it.
Tick record files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.

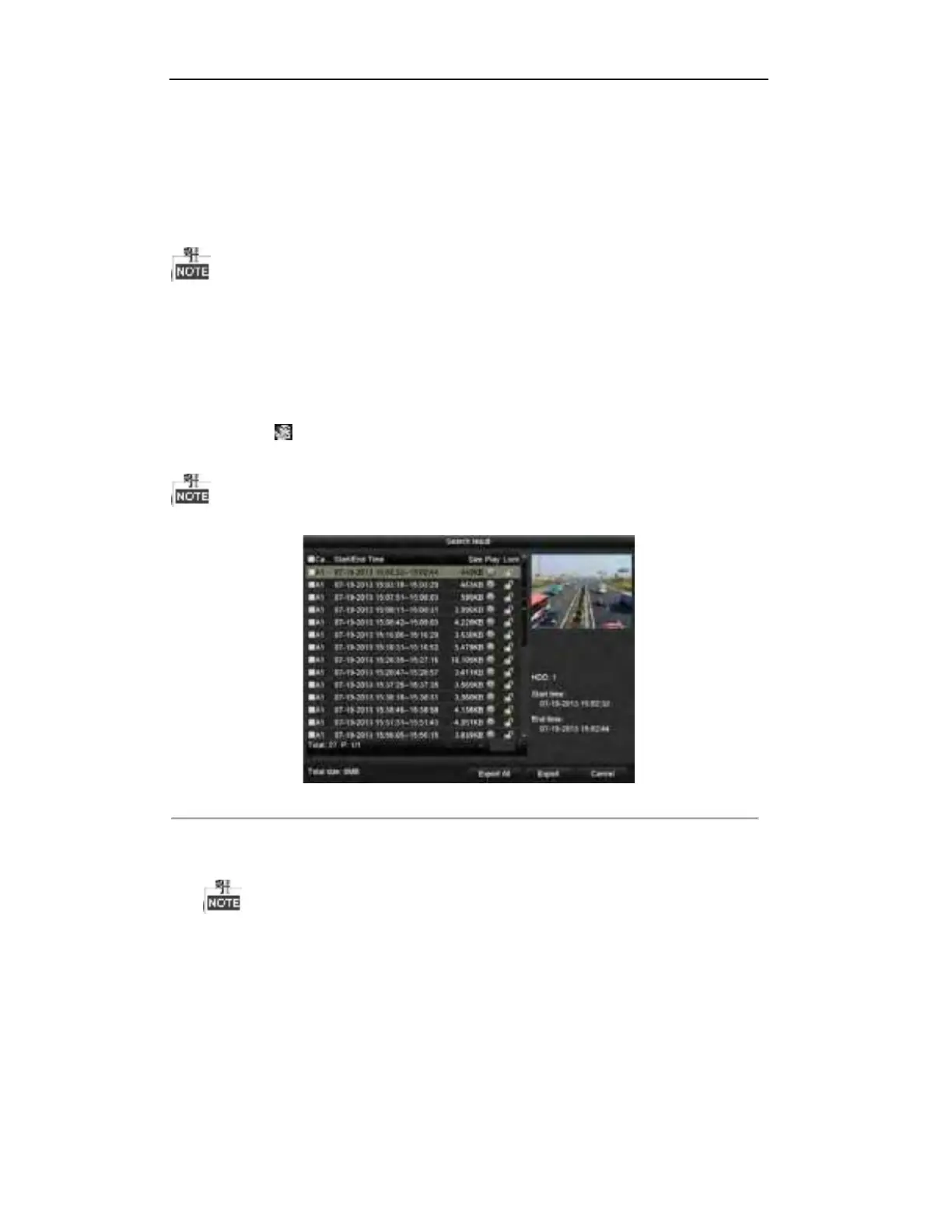

Figure 7. 5 Result of Normal Video Search for Backup
4. Export.
Click
Export button and start backup.


 Please format the eSATA first when using it for the first time.


 If the inserted eSATA HDD is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format eSATA HDD via the device.

HIKVISION DS-9016HQHI-SH Specifications

General

Product color	Black
Channels quantity	16 channels
Total storage capacity	0 GB
Video compression formats	H.264
Graphical user interface (GUI)	Yes
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	8
RS-485 ports	1
BNC input ports	16
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, HTTPS, DDNS, RTP, RTSP, SNMP
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Power requirements	100-240 VAC, 47-63Hz
Power consumption (typical)	65 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	8000 g
Dimensions (WxDxH)	445 x 470 x 90 mm
