HIKVISION DS-K1104MK User Manual

DS-K1100 Series Card Reader
7
Chapter 2 Installation
2.1 Installing PSAM Card
PSAM card slot is only available for CPU card reader.
Insert the PSAM card into the slot according to the direction
shown below.

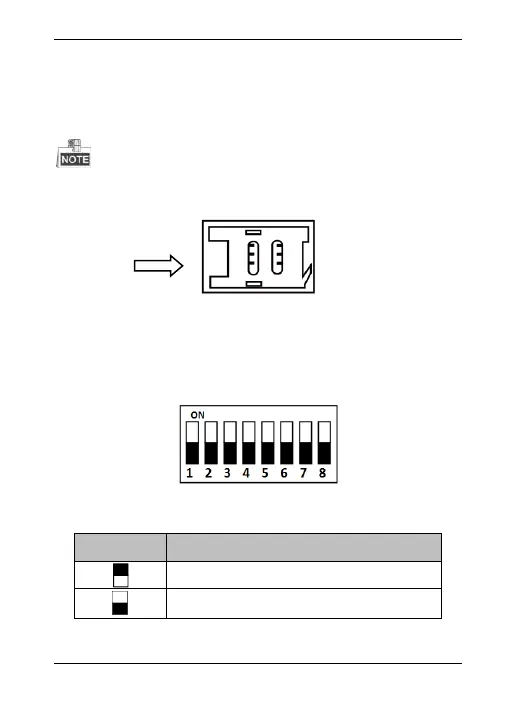

Figure 2-1 PSAM Card Slot
2.2 Introduction for DIP Switch
The DIP switch module is shown below. The No. of DIP switch
from left to right is 1 ~ 8.
Figure 2-2 DIP Switch Module
Table 2-1 Description of DIP Switch
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0000 1100.

HIKVISION DS-K1104MK Specifications

General

Quantity per pack	1 pc(s)
Internal	No
Product color	Black, Silver
Built-in processor	Yes
Compatible memory cards	-
RS-485 ports	1
Type	Basic access control reader
Certification	FCC, CE
LED indicators	Status
RFID frequency	13.56 MHz
Authentication type	Access chip/card, Password
Supported protocols	Mifare
Keypad number of keys	12
RFID reading distance	50 mm
International Protection (IP) code	IP65
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption	0.5 mA

Weight and Dimensions

Depth	23 mm
Width	76 mm
Height	118 mm
Weight	520 g
