Fingerprint and Card Reader User Manual
7

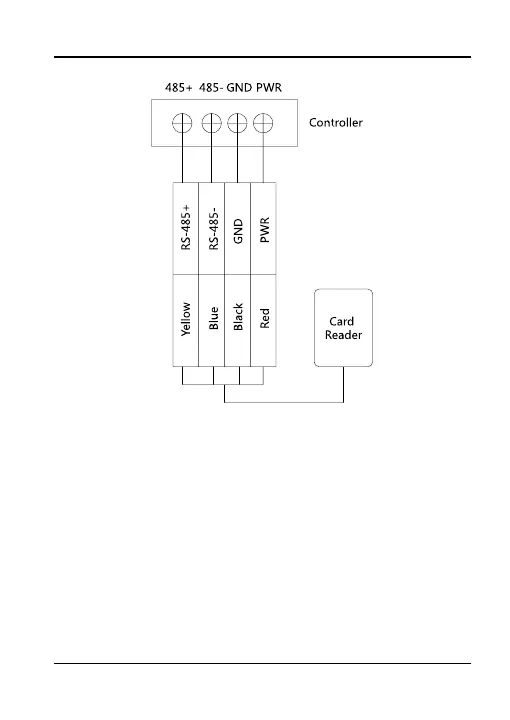

Figure 2-3 Wiring for RS-485 Communication Mode
2.4 Installing Card Reader
Before you start:
Set the DIP switch. For details, refer to 2.1 Introduction for DIP
Switch.
Steps:
