HIKVISION DS-K1T343 Series User Manual

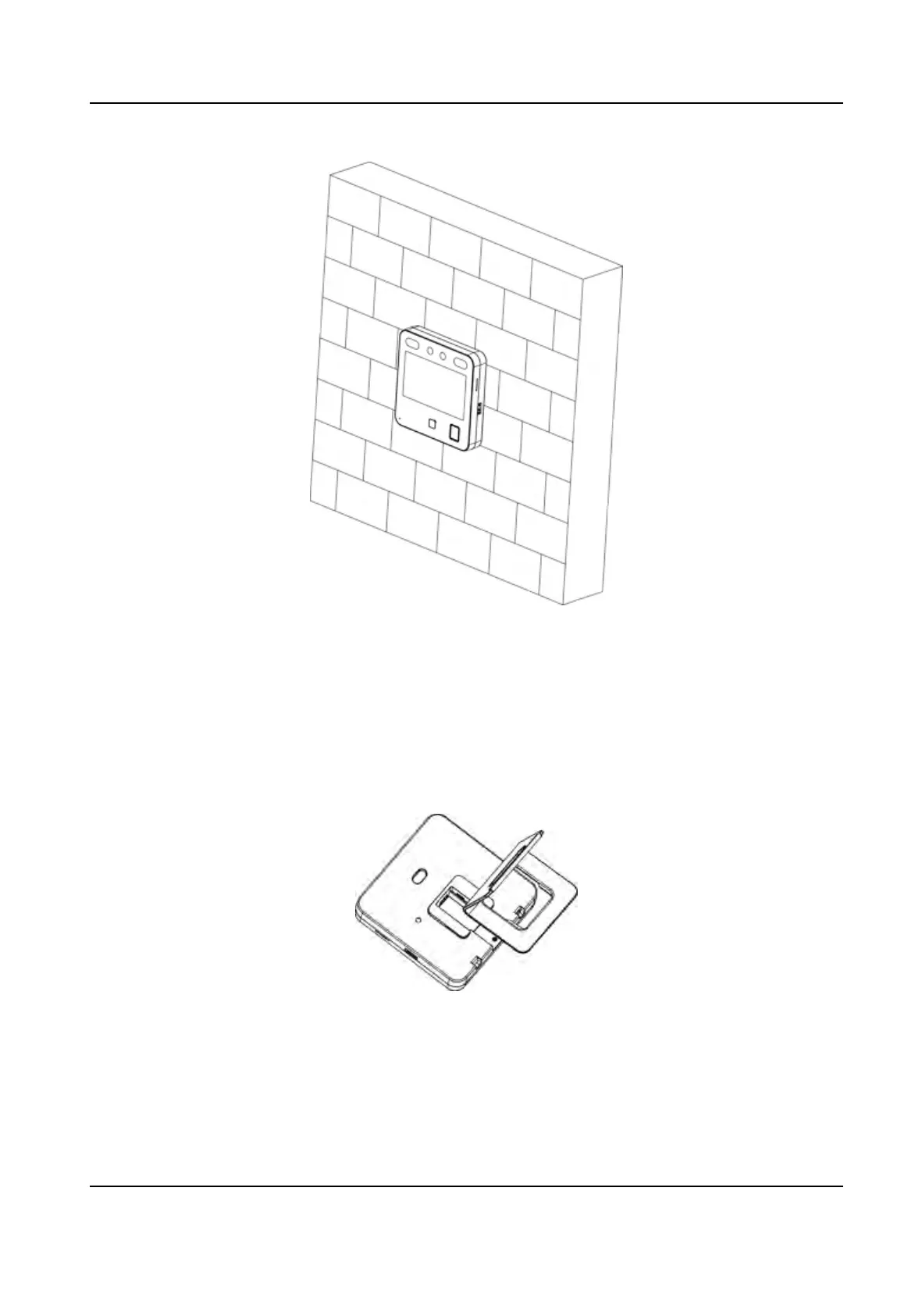

Figure 3-3 Secure Device
3.3 Base
Mounng
Steps
1.
Route the cables through the cable hole of the bracket, and connect the terminals with
peripherals cables. Place the bracket close to the back side of the device.
Figure 3-4 Place Bracket Close to Device Back Side
2.
Press the bracket with both hands, and make sure that the buckle of the bracket ts with the
back side of the device. Fasten the bracket in the direcon of the arrow.
DS-K1T343 Series Face Recognion Terminal User Manual
6
