HIKVISION DS-K2800 Series User Manual

Access Control Terminal·User Manual
45
2. Select the APN name as CMNET or UNINET.
3. Input the SIM Card No.
4. Select the center group in the dropdown list.
5. Input the IP address and port No.
6. Select the protocol type as EHome. By default, the port No. for EHome is 7660.
7. Set an account name for the network center. A consistent account should be used in one
platform.
8. Click Save button to save parameters.
Note: The port No. of the wireless network and wired network should be consistent with the port
No. of EHome.
7.4.5 Capture Settings
You can set the parameters of capture linkage and manual capture.
Select the device in the device list, and click Modify to pop up the modifying device information
window.
Click Capture Settings tab to enter the capture settings interface.
Notes:
 The Capture Settings should be supported by the device.
 Before setting the capture setting, you should configure the storage server for picture storage.

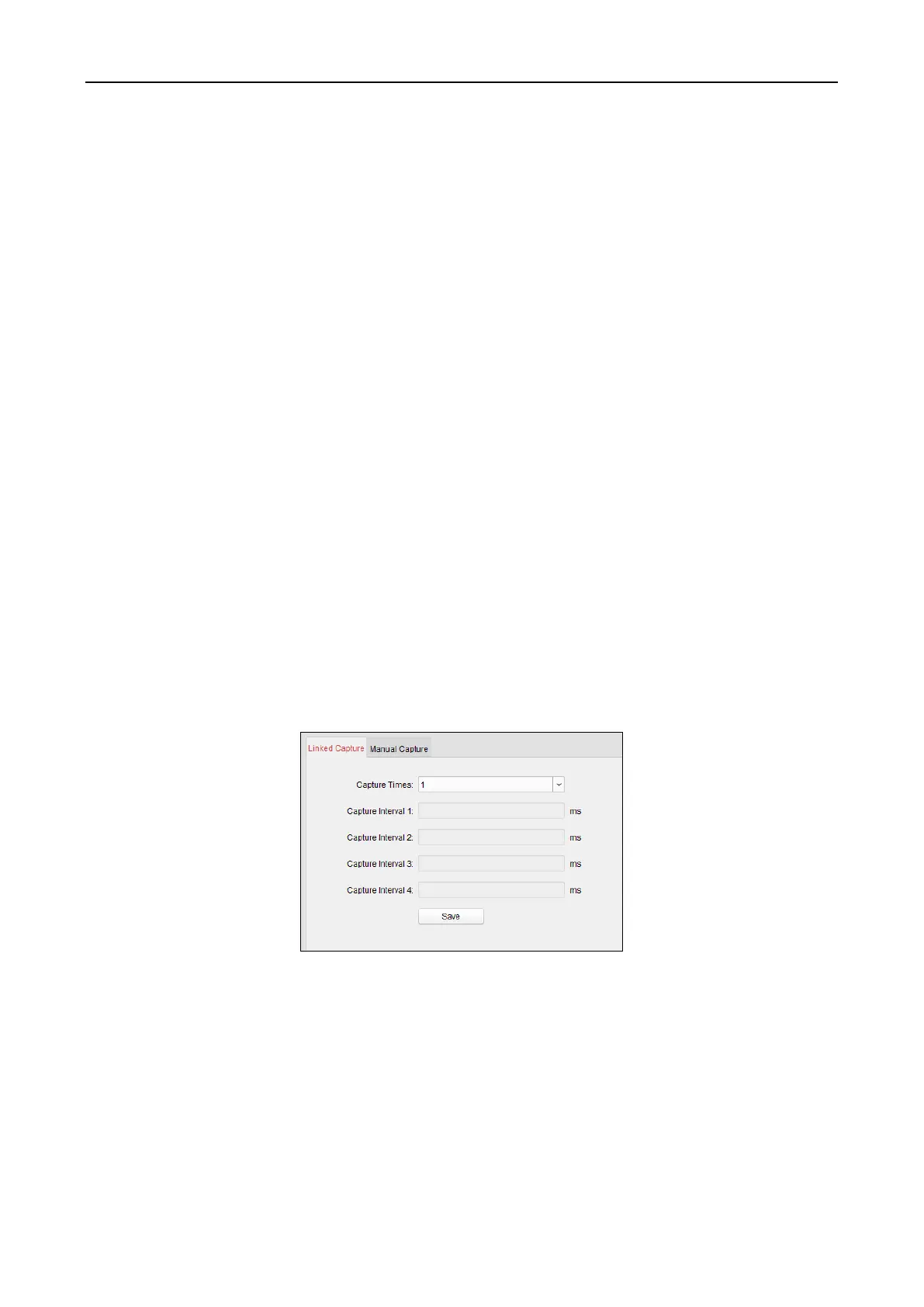

Linked Capture
Steps:
1. Select the Linked Capture tab.
2. Set the linked capture times once triggered.
Set the capture interval according to the capture times.
3. Click Save to save the settings.
Manual Capture
Steps:
1. Select the Manual Capture tab.
