HIKVISION DS-KD-KK User Manual

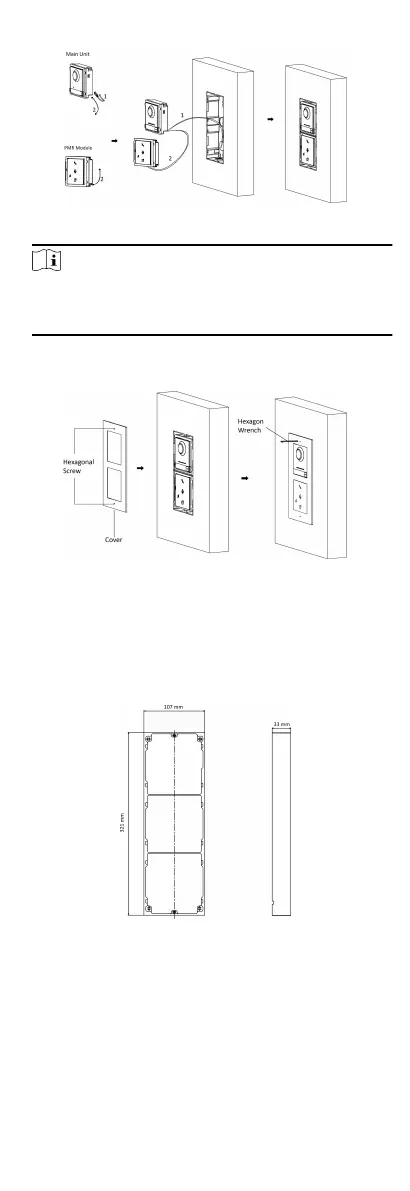

Figure 4-14 Connect Cables and Insert the Modules
Note
Cable 1 refers to the cables pulled out from the wall that
connected to the main unit. Cable 2 refers to the module-
connecng line in the accessory package.
8. Fix the cover with 2 socket head cap screws by using a hexagon
wrench (supplied).
Figure 4-15 Fix the Cover
4.3 Three-Module Installaon
4.3.1 Three-Module Surface Installaon
Before You Start
Figure 4-16 Mounng Frame
19

HIKVISION DS-KD-KK Specifications

General

Product color	Black, Grey, White
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	438 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
Sustainability certificates	RoHS, WEEE, REACH
DC input voltage	12 V

Weight and Dimensions

Depth	33.7 mm
Width	98.2 mm
Height	100.2 mm
Weight	190 g
