HIKVISION DS-KD-KK User Manual

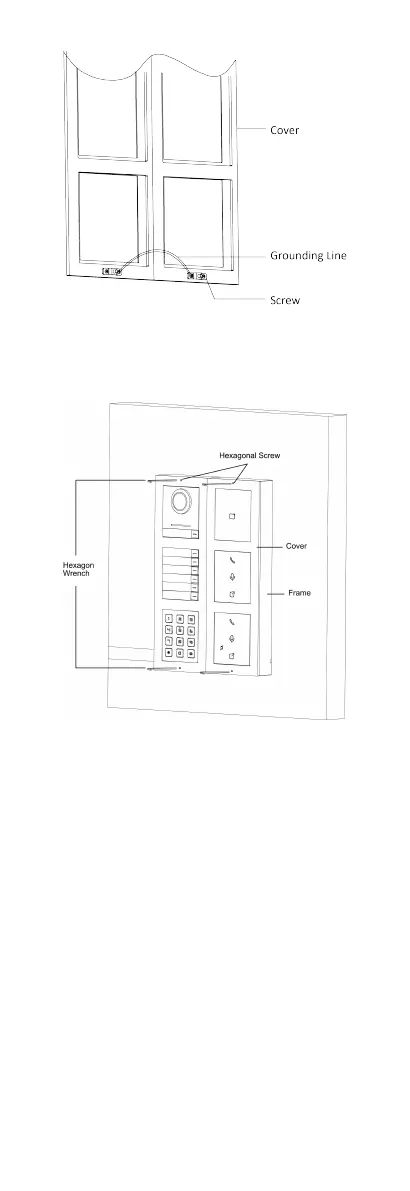

Figure 4-38 Connect the Grounding Line to the Cover
11. Use the hexagon wrench in the package to x the cover onto
the frame.
Figure 4-39 Fix the Cover
4.4.2 More-Than-Three Module Flush
Mounng
29

HIKVISION DS-KD-KK Specifications

General

Product color	Black, Grey, White
Brand compatibility	Hikvision
International Protection (IP) code	IP65
Package weight	438 g
Quantity per pack	1 pc(s)
Storage temperature (T-T)	10 - 95 °C
Operating temperature (T-T)	-40 - 55 °C
Sustainability certificates	RoHS, WEEE, REACH
DC input voltage	12 V

Weight and Dimensions

Depth	33.7 mm
Width	98.2 mm
Height	100.2 mm
Weight	190 g
