HIKVISION DS-KD8002-VM Quick Start Guide

Video Intercom Door Station·Quick Start Guide
17
3 Installation
Before you start:
 Make sure the device in the package is in good condition and all the assembly parts
are included.
 The power supply the door station supports is 12 VDC. Please make sure your power
supply matches your door station.
 Make sure all the related equipment is power-off during the installation.
 Check the product specification for the installation environment.
3.1 Installation of DS-KD8102-V
To install the door station onto the wall, you are required to use a matched gang box.
3.1.1 Gang Box for DS-KD8102-V
123
47.5
404

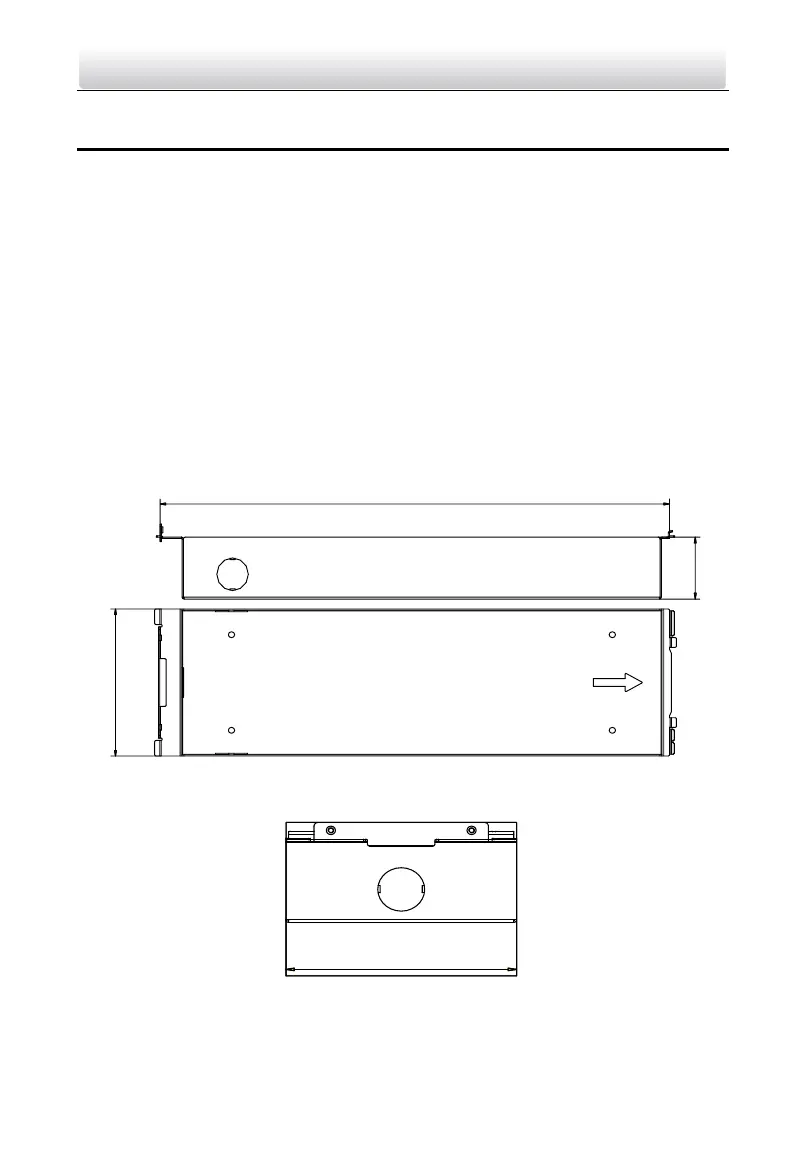

Figure 3-1 Front and Side View
123
Figure 3-2 Overhead (Plan) View

HIKVISION DS-KD8002-VM Specifications

General

Video codecs	H.264
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Number of buttons	14 buttons
Connectivity technology	Wired
Sustainability certificates	RoHS
Voice codecs	G.711u
Operating system installed	Linux
Proper use	Outdoor
Product color	Aluminium, Black
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Display aspect ratio	3:2
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Operating relative humidity (H-H)	10 - 90 %
Door station operating temperature (T-T)	-40 - 70 °C
Outdoor unit power type	AC/DC
Power consumption (typical)	15 W
Sensor type	CMOS
Maximum frame rate	30 fps
Maximum video resolution	1280 x 720 pixels

Weight and Dimensions

Depth	61 mm
Width	145 mm
Height	418 mm
Door station dimensions (WxDxH)	145 x 61 x 418 mm
