HIKVISION DS-KIS202 User Manual

Video Door Phone·User Manual
5

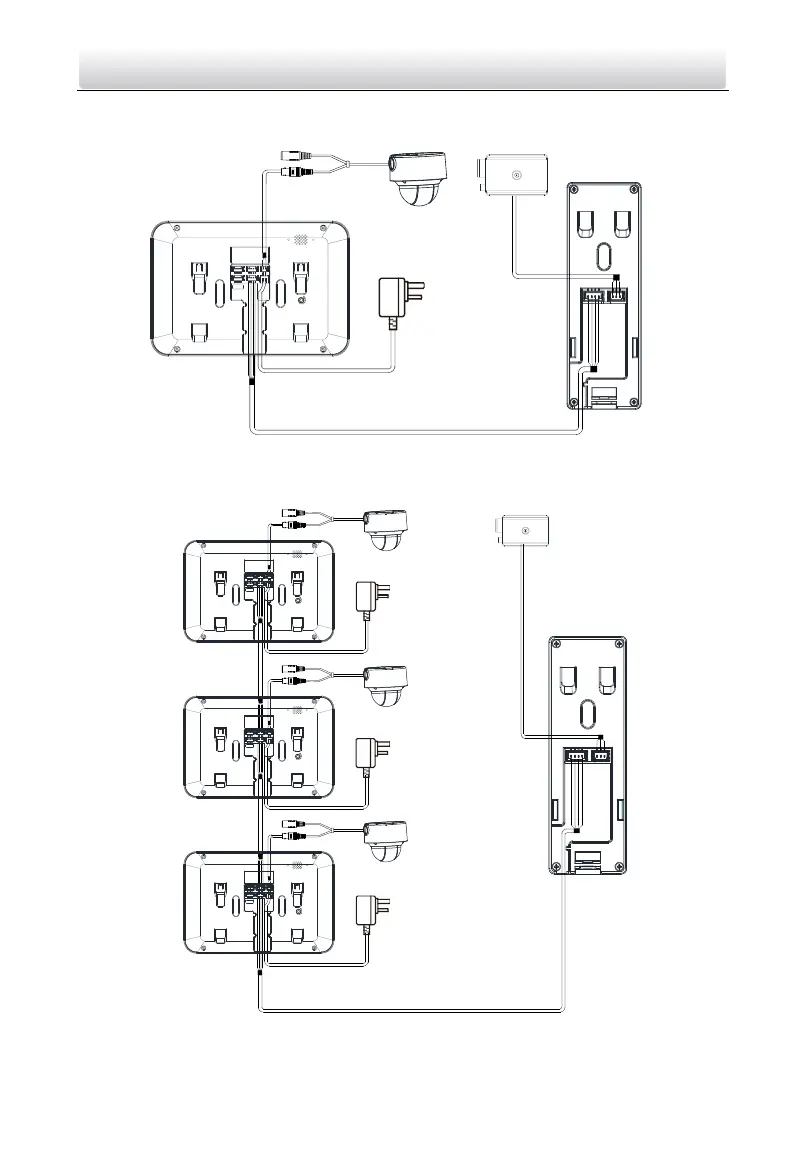

3.2.1 Wiring 1 (1 Door Station and 1 Indoor Station)
Indoor Station
Analog Camera Electric Bolt
Door Station
B+ — Wire for power supply
V — Wire for video input
A — Wire for audio input/output
G — Wire for grounding
Figure 3-3 Wiring 1 (1 Door Station and 1 Indoor Station)
3.2.2 Wiring 2 (1 Door Station and 3 Indoor Stations)
Indoor
Station 1
Analog Camera 1
Indoor
Station 2
Analog Camera 2
Indoor
Station 3
Analog Camera 3
Electric Bolt
Door
Station
B+ — Wire for power supply
V — Wire for video input
A — Wire for audio input/output
G — Wire for grounding
Figure 3-4 Wiring 2 (1 Door Station and 3 Indoor Stations)

HIKVISION DS-KIS202 Specifications

General

Camera included	Yes
Connectivity technology	Wired
Maximum number of cameras supported	1
Display diagonal	7 \
Display resolution	800 x 480 pixels
Display technology	TFT
Megapixel	1 MP
Sensor type	CMOS
Maximum frame rate	25 fps
Optical sensor size	1/4 \
Maximum video resolution	720 x 576 pixels
Product color	White
Housing material	Aluminum
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	5 W

Weight and Dimensions

Depth	42 mm
Width	128 mm
Height	24.8 mm
Power supply dimensions (WxDxH)	195.8 x 132.8 x 18.39 mm
