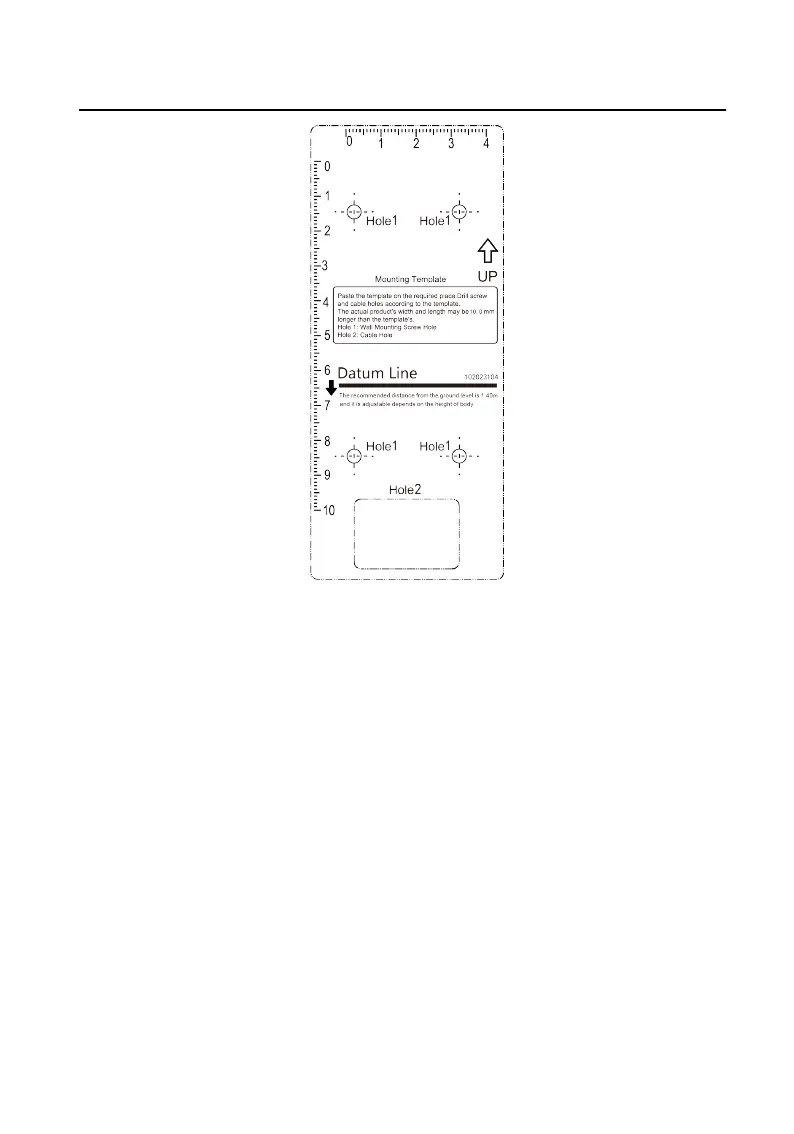

Figure 3-4 Mounng Template
2.
Align the protecve shield with the mounng template.
3.
Secure the mounng plate and protecve shield on the wall with 4 supplied
screws according to the screw holes.
4.
Install the villa door staon to the mounng plate. Fix the device on the
mounng plate with the set screw.
Video Intercom Villa Door
Staon User Manual
9
