Network Box Camera·Quick Start Guide
19

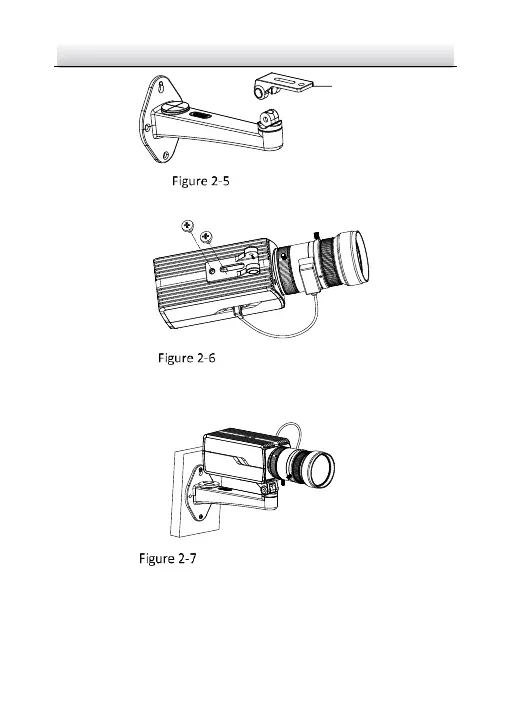

Pedestal
Separate Pedestal
2. Fix the pedestal to camera body.
Fix Pedestal to Camera
3. Install the wall mount to wall.
4. Install the pedestal together with the camera back to wall mount.
Install Camera to Wall Mount
5. Adjust the surveillance angle.
1). Loosen tilt adjusting screw. Tighten the screw after adjusting.
2). Loosen pan adjusting screw. Tighten the screw after adjusting.
