Recommended minimum conductor cross-sections and maximum power cord lengths for 120V sup-
ply voltage
Power cord AWG 16 AWG 14 AWG 12 AWG 10
Conductor cross-section 1,31 mm² 2,08 mm² 3,31 mm² 5,26 mm²
Conductor cross-section 2,58 kcmil 4,11 kcmil 6,53 kcmil 10,4 kcmil
Power cord length 25 m 30 m 50 m 100 m
Power cord length 75 ft 100 ft 150 ft 250 ft
5.1.3 Checking the portable residual current device (PRCD)
DCH 300–X
1. Plug the power tool’s supply cord into a grounded power outlet.
2.
Press the ON button on the portable residual current device.
◁ The indicator shows.
3.
Press the Test button on the portable residual current device.
◁ The indicator goes out.
▽ The indicator does not goes out.
▶ Do not use the power tool. Have it repaired by a qualified specialist using genuine Hilti spare
parts.

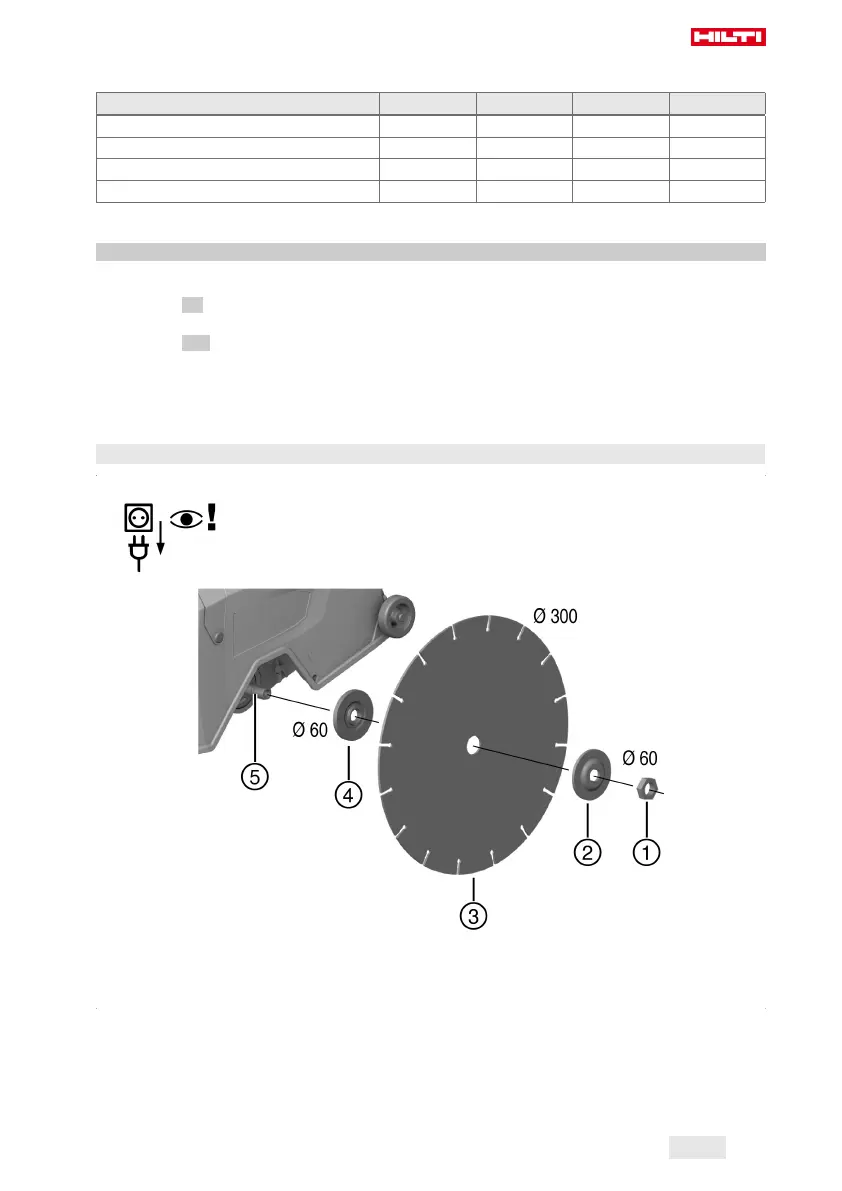

5.2 Fitting a diamond cutting disc
@
M16 × 1.5 clamping nut
;
Ø 60 mm clamping flange
=
Diamond cutting disc
%
Ø 60 mm reversible flange
&
Arbor
1. Observe the instructions concerning correct selection of suitable cutting discs → page 12 and the
dimension and format specifications for diamond cutting discs → page 12.
