English 15
5. Place the diamond cutting disc on the reversible flange.
6. Fit the 80 mm diameter clamping flange and the clamping nut.
7. Press the arbor lockbutton and hold it in this position.
8. Use the wrench to tighten the clamping nut securely and then release the arbor lockbutton.
9. Check to ensure that the arbor lockbutton has disengaged and that the arbor is again free to rotate.
5.4 Removing the cutting disc
1. Check that the supply cord has been unplugged from the power outlet.
2. If the following conditions are met, also take this action:
Conditions: The depth gauge (accessory) is fitted.
▶ Remove the depth gauge. → page 16
CAUTION
Risk of breakage and irreparable damage. If the spindle lockbutton is pressed while the spindle is rotating,
this may cause the disc to work loose or detach from the power tool.
▶ Press the spindle lockbutton only when the spindle has stopped rotating.
3. Press and hold down the arbor lockbutton.
4. Use the hex key to slacken the clamping nut.
5. Remove the clamping nut, the clamping flange, the cutting disc and the reversible flange from the arbor,
one after the other.

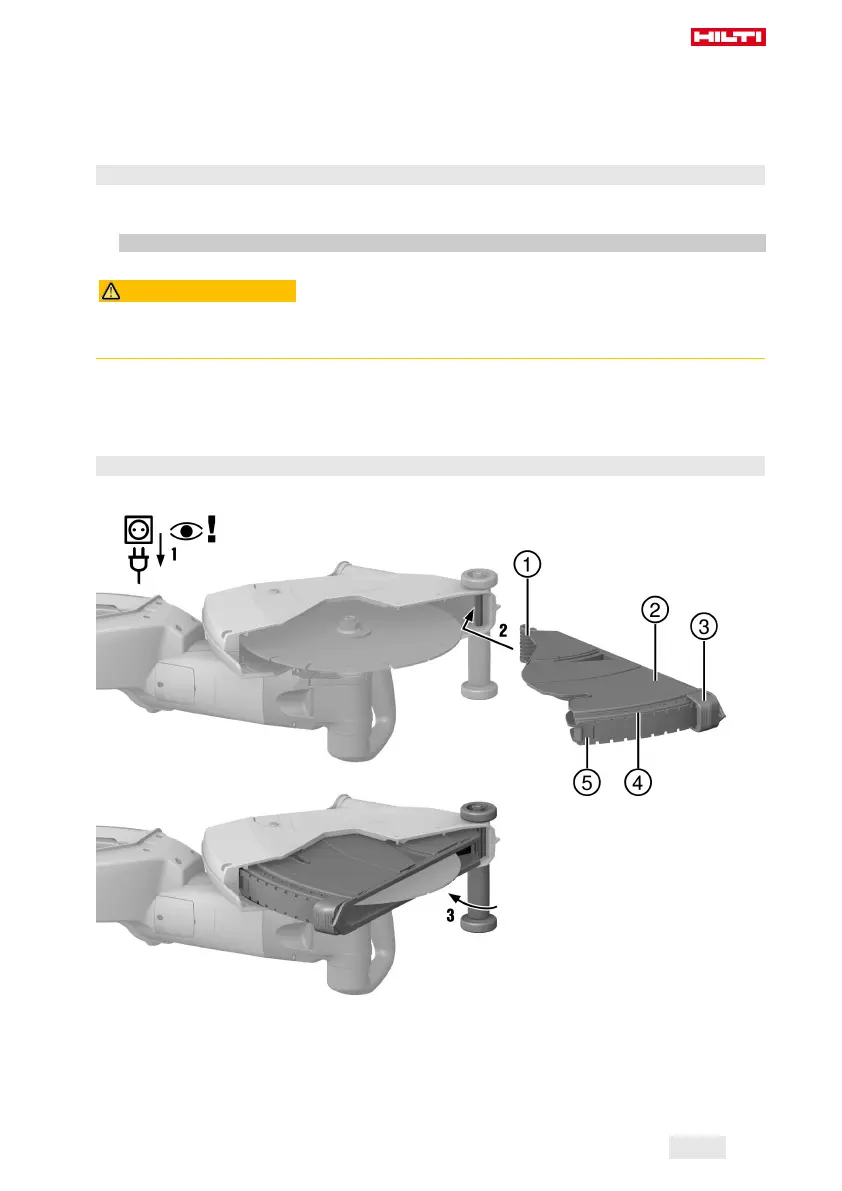

5.5 Fitting the depth gauge (optional)
@
Hook
;
Hood extension
=
Cutting depth indicator slider
%
Cutting depth scale
&
Stop
Printed: 23.10.2018 | Doc-Nr: PUB / 5459263 / 000 / 00
